Main DFM image

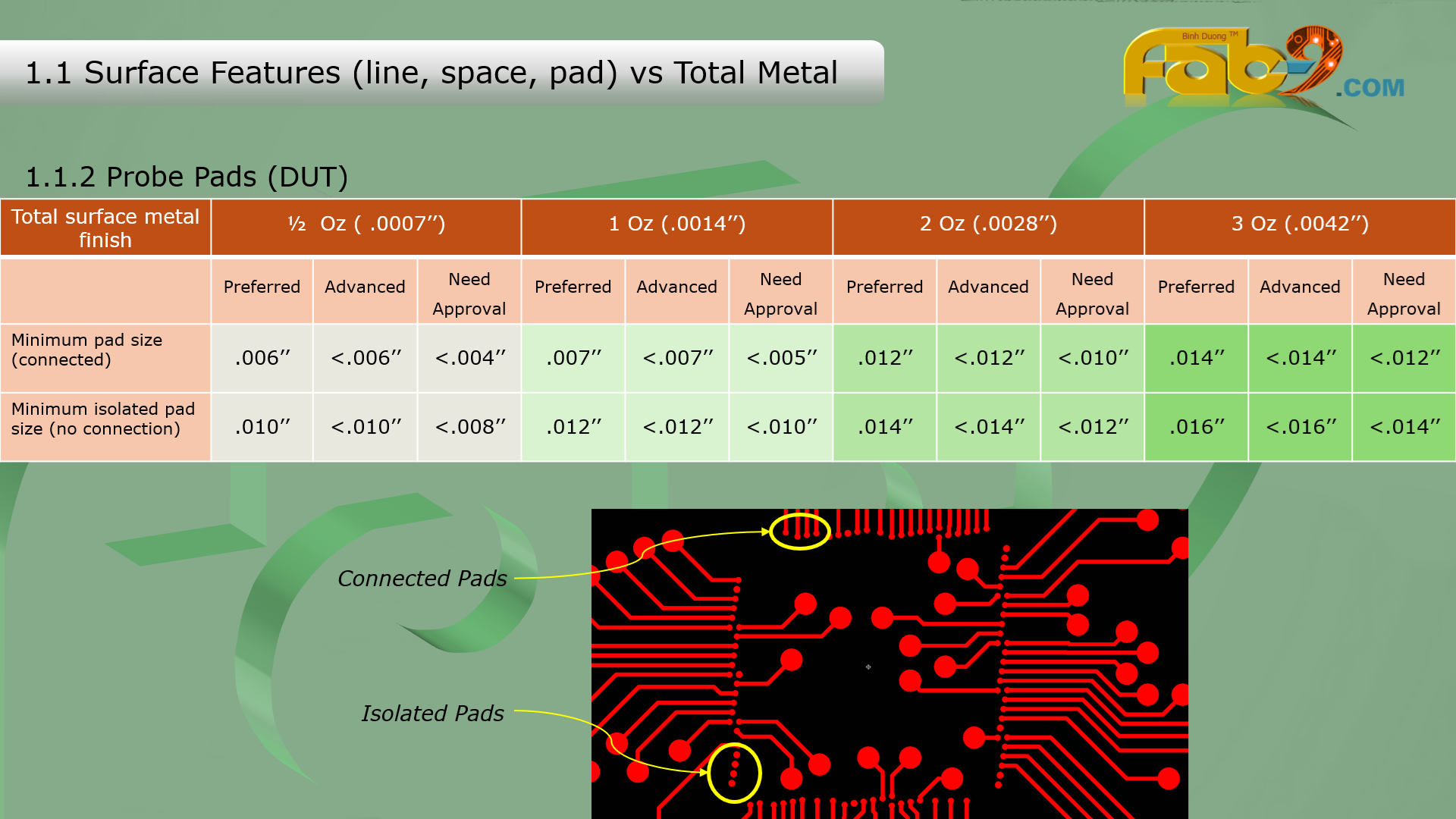

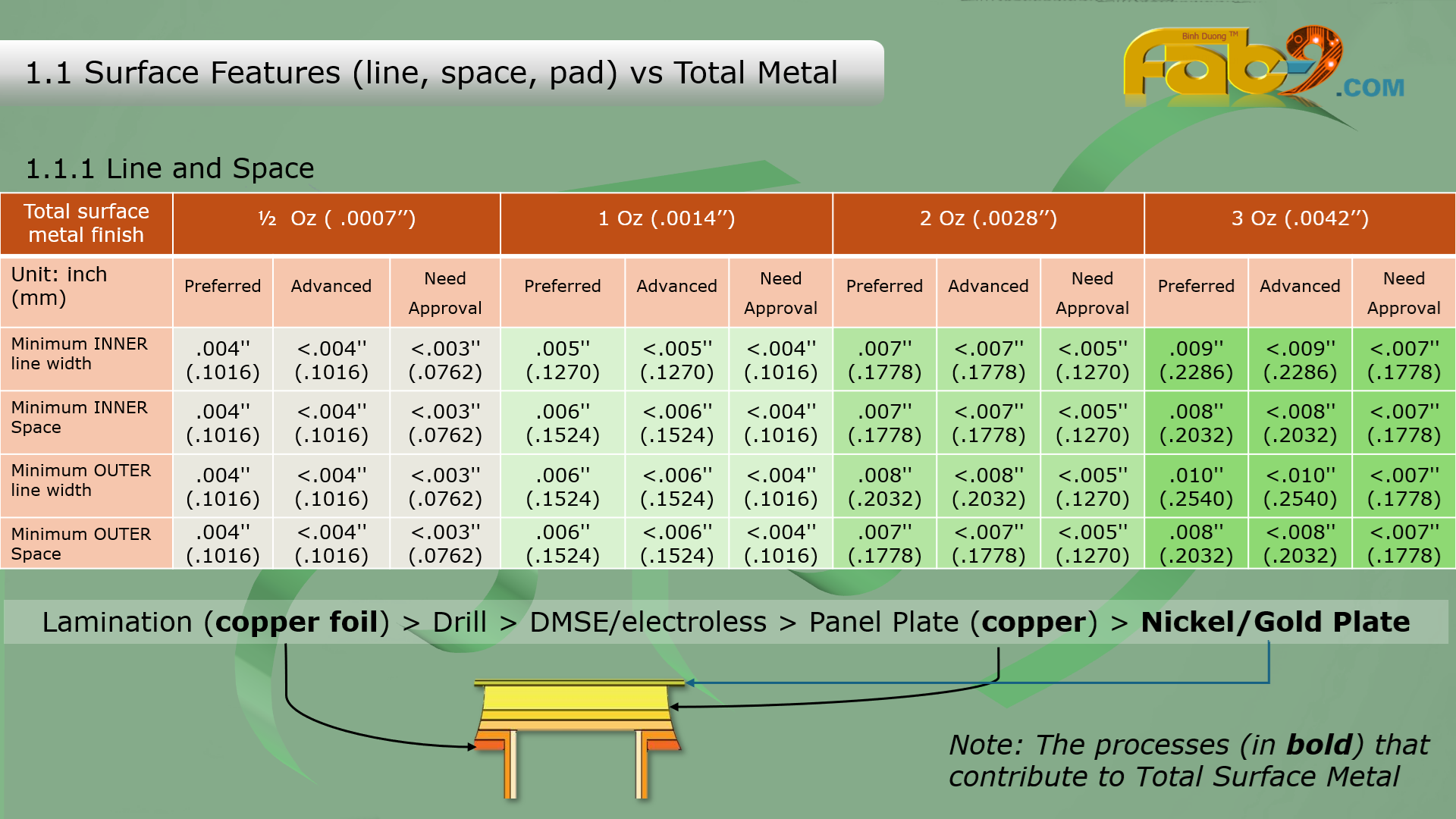

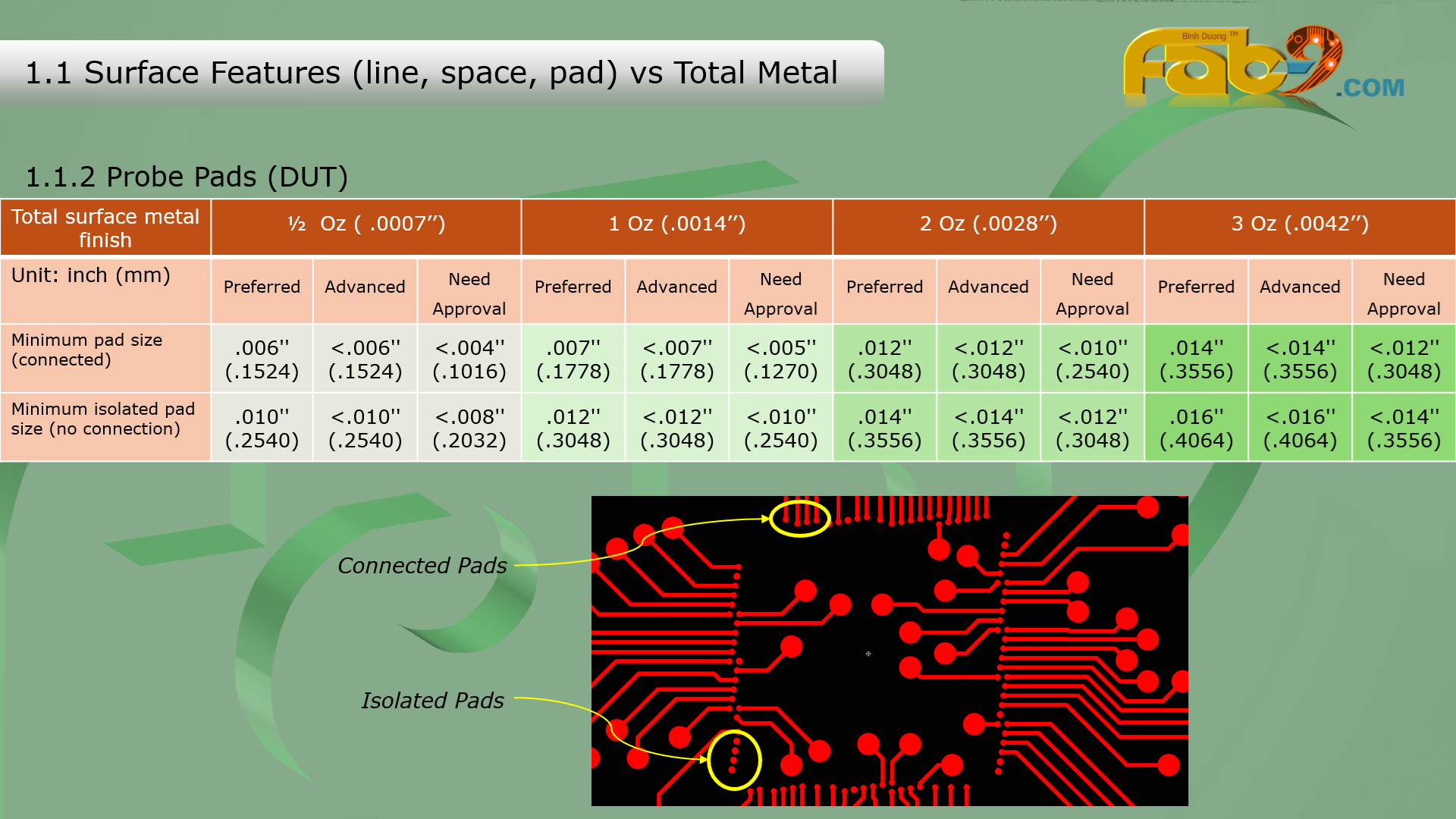

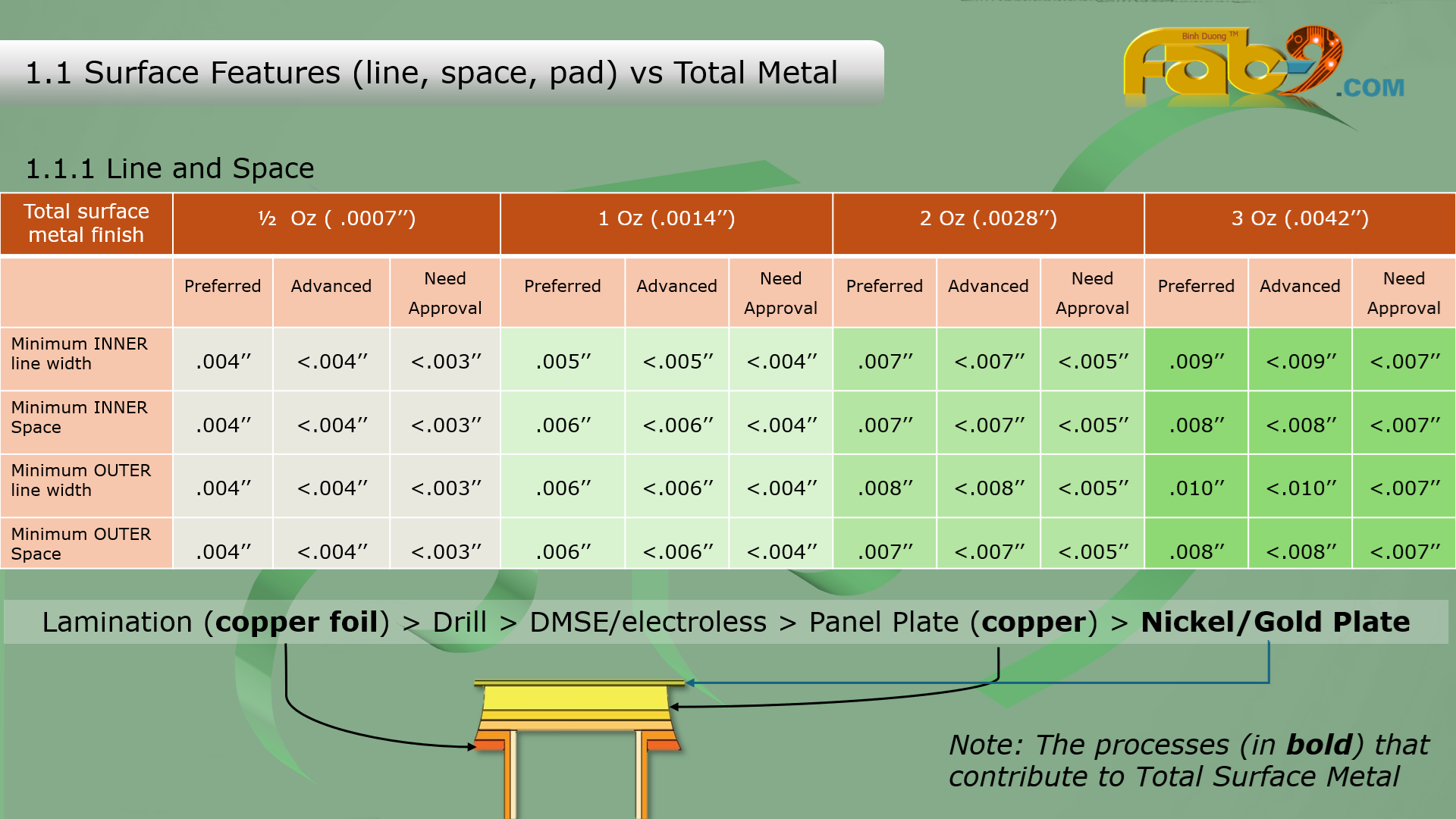

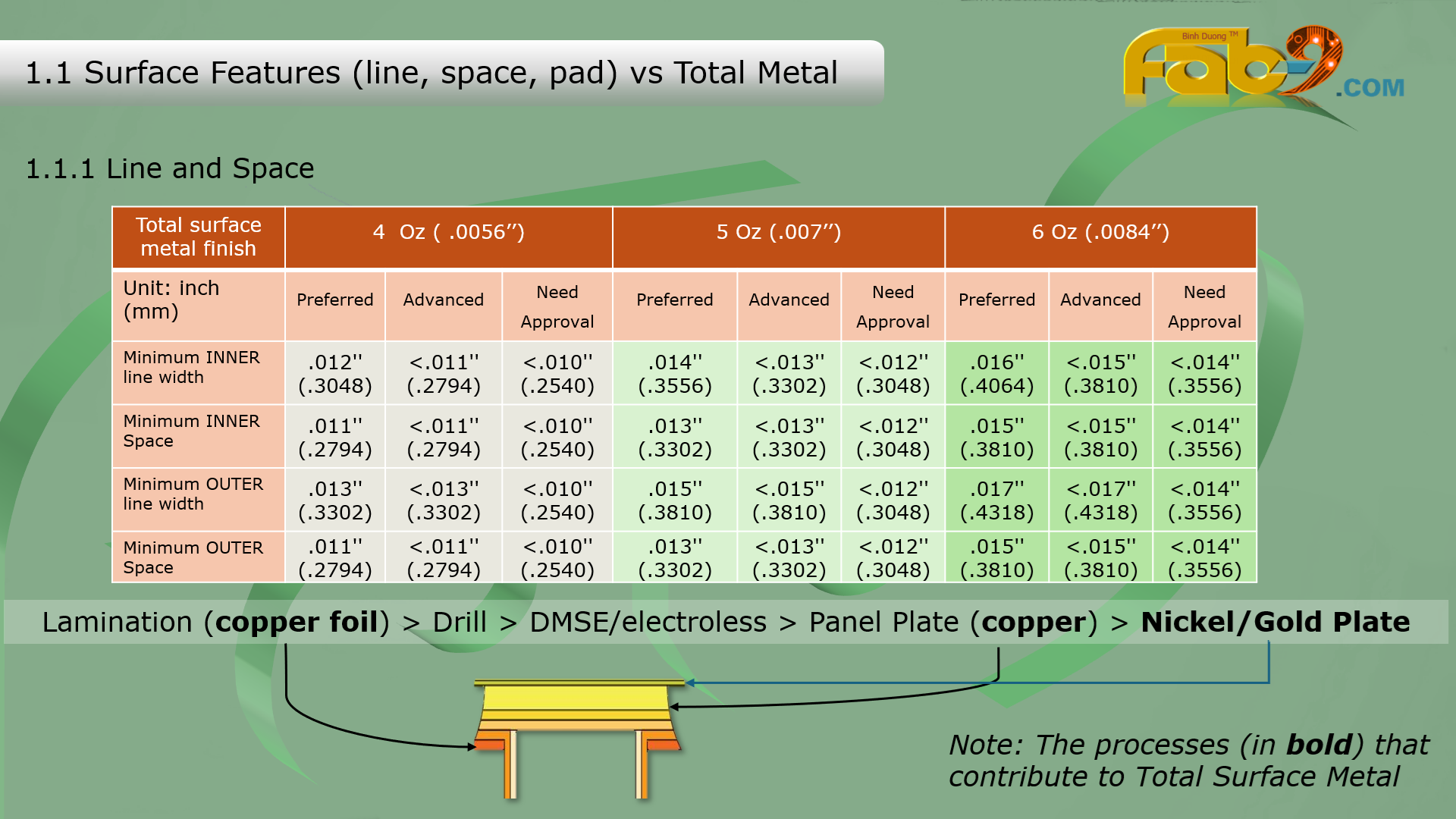

1.1 Surface Features (line, space, pad) vs Total Metal

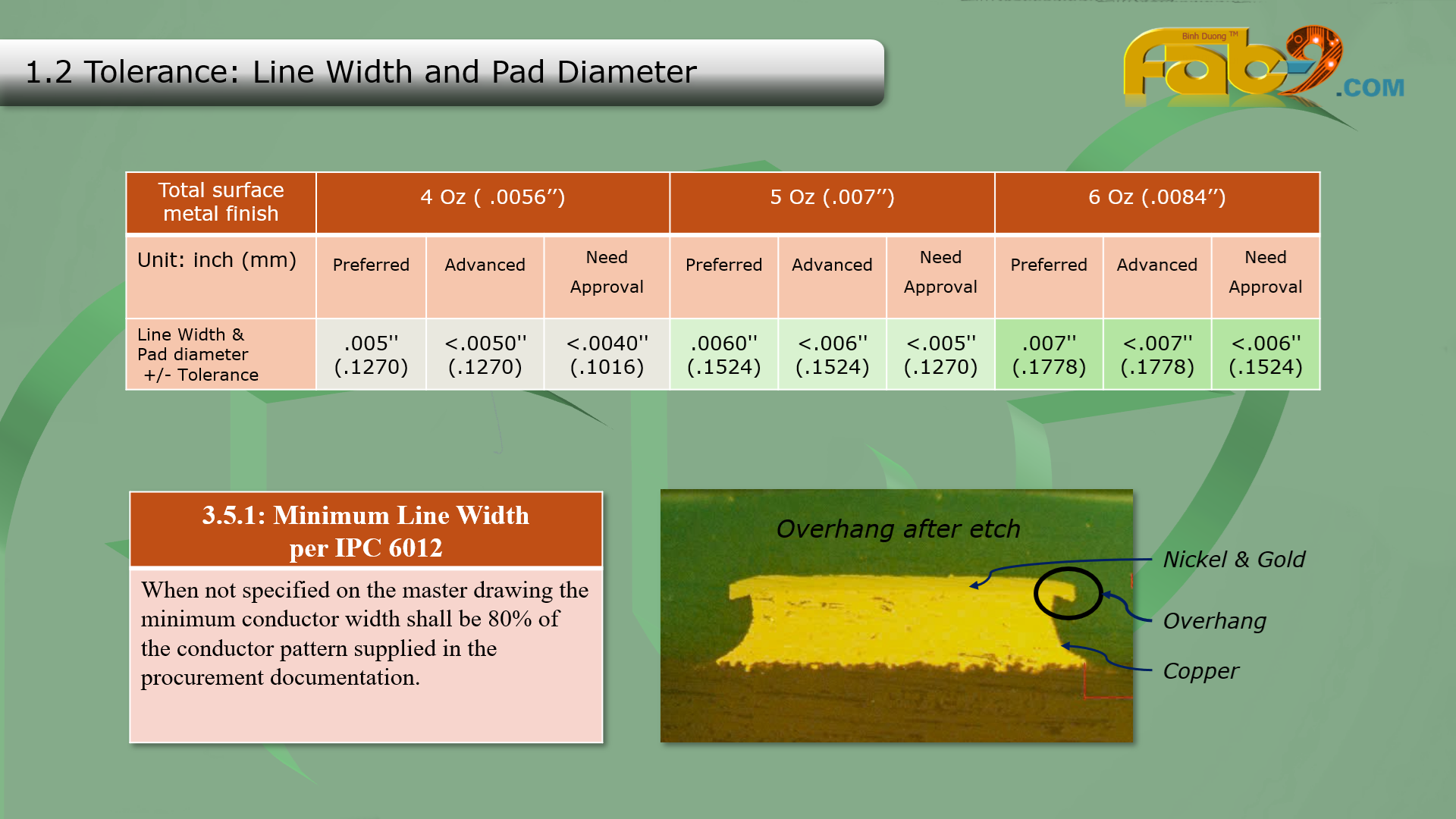

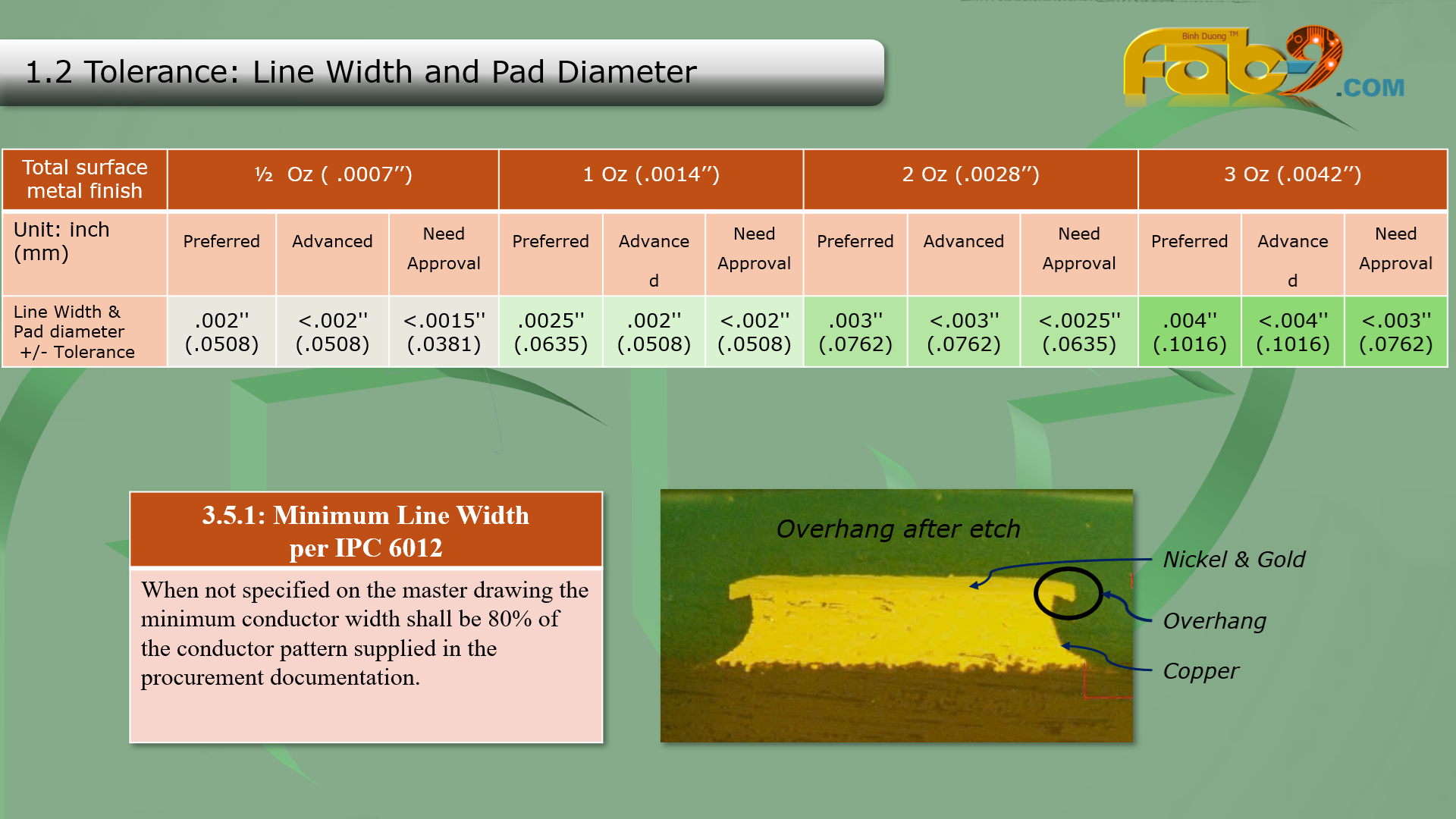

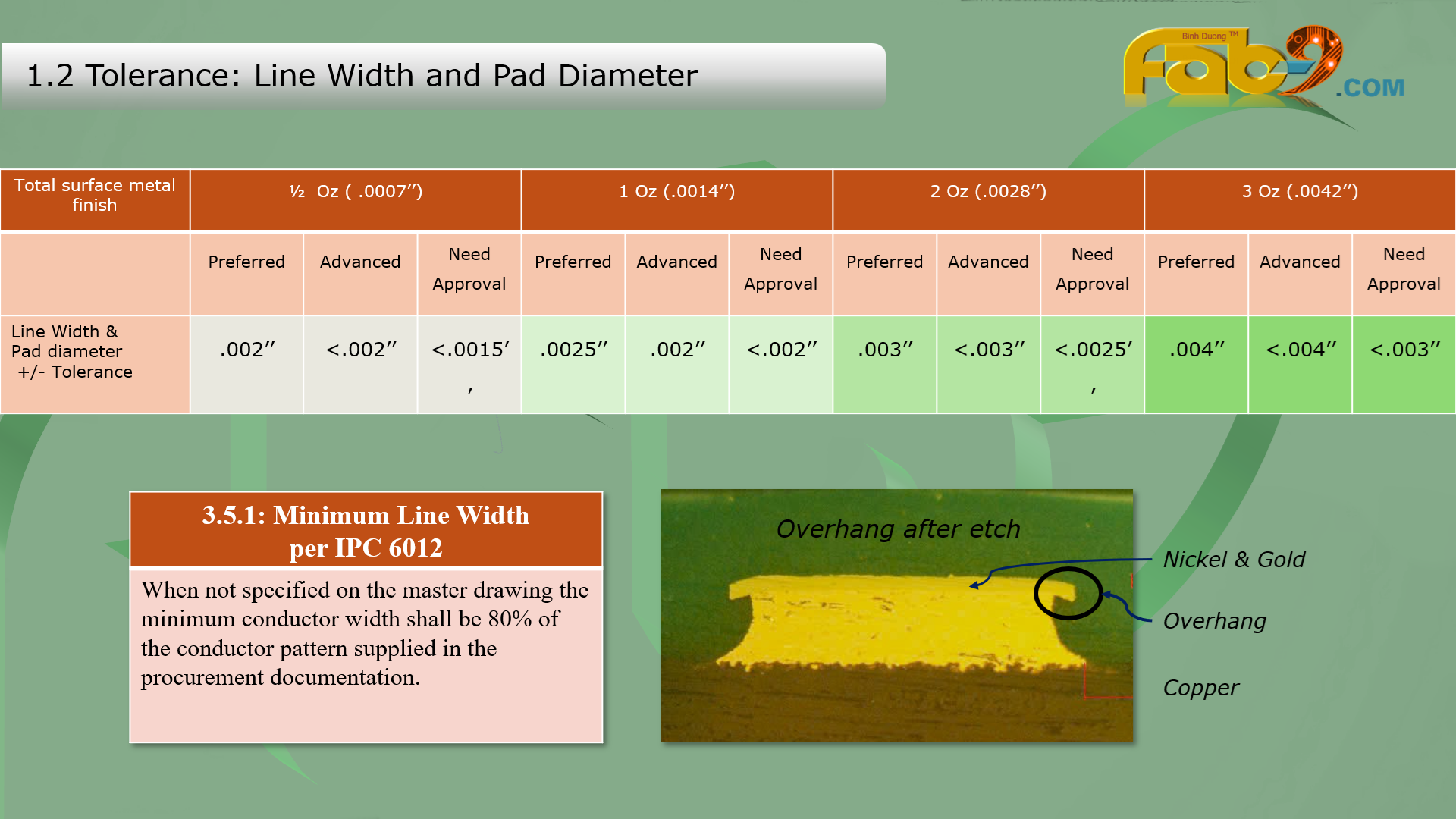

1.2 Tolerance: Line Width and Pad Diameter

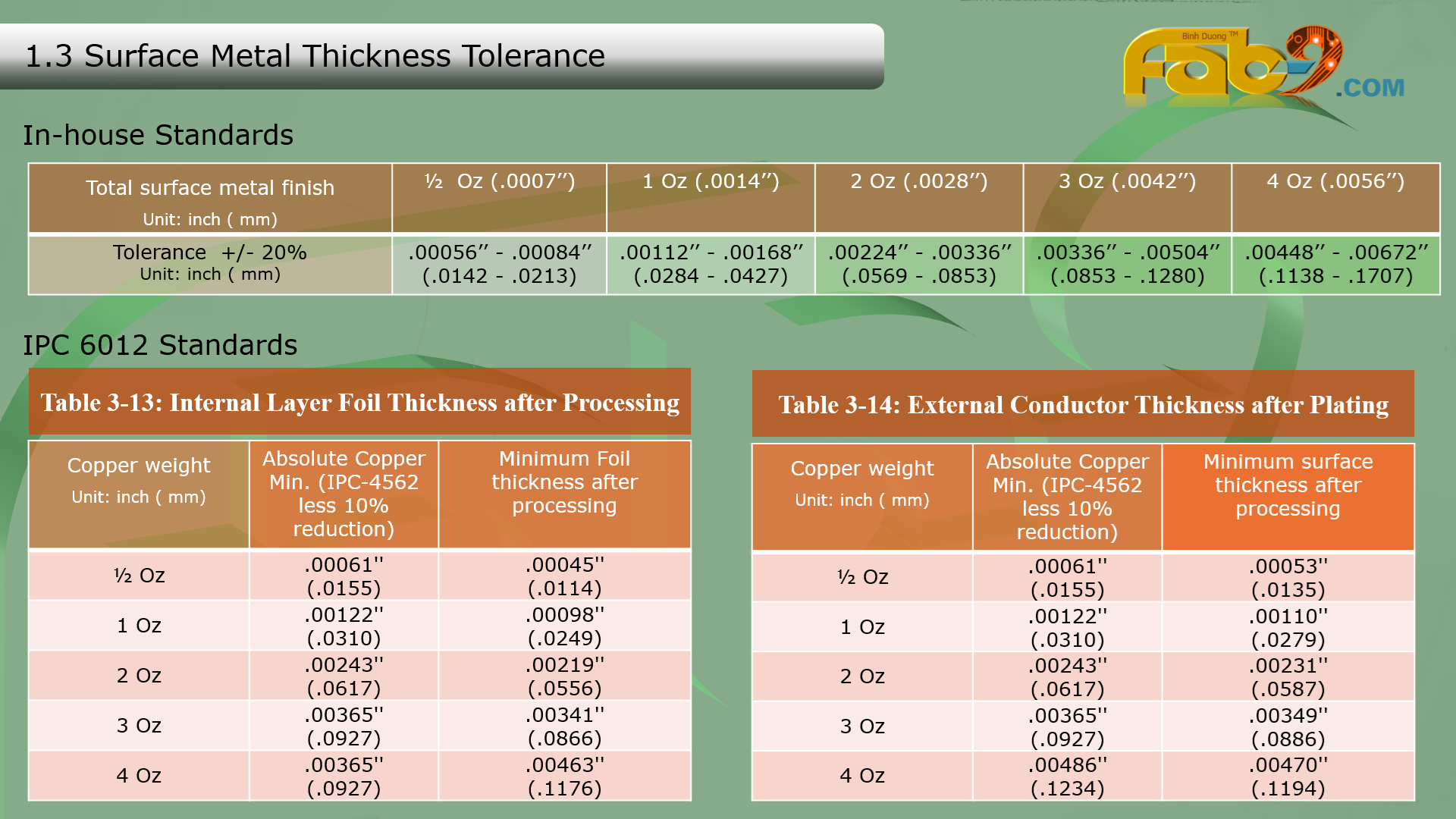

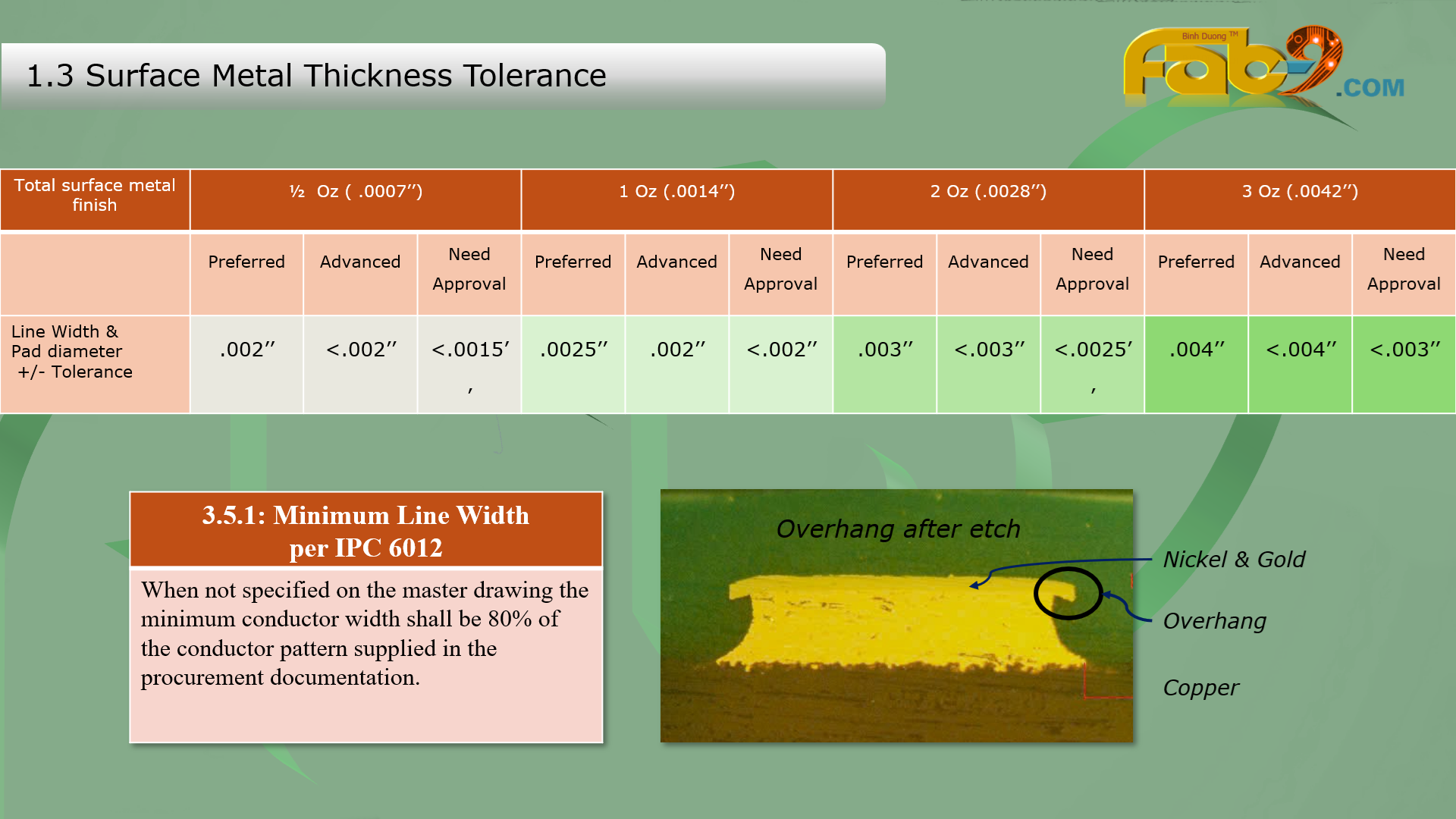

1.3 Surface Metal Thickness Tolerance

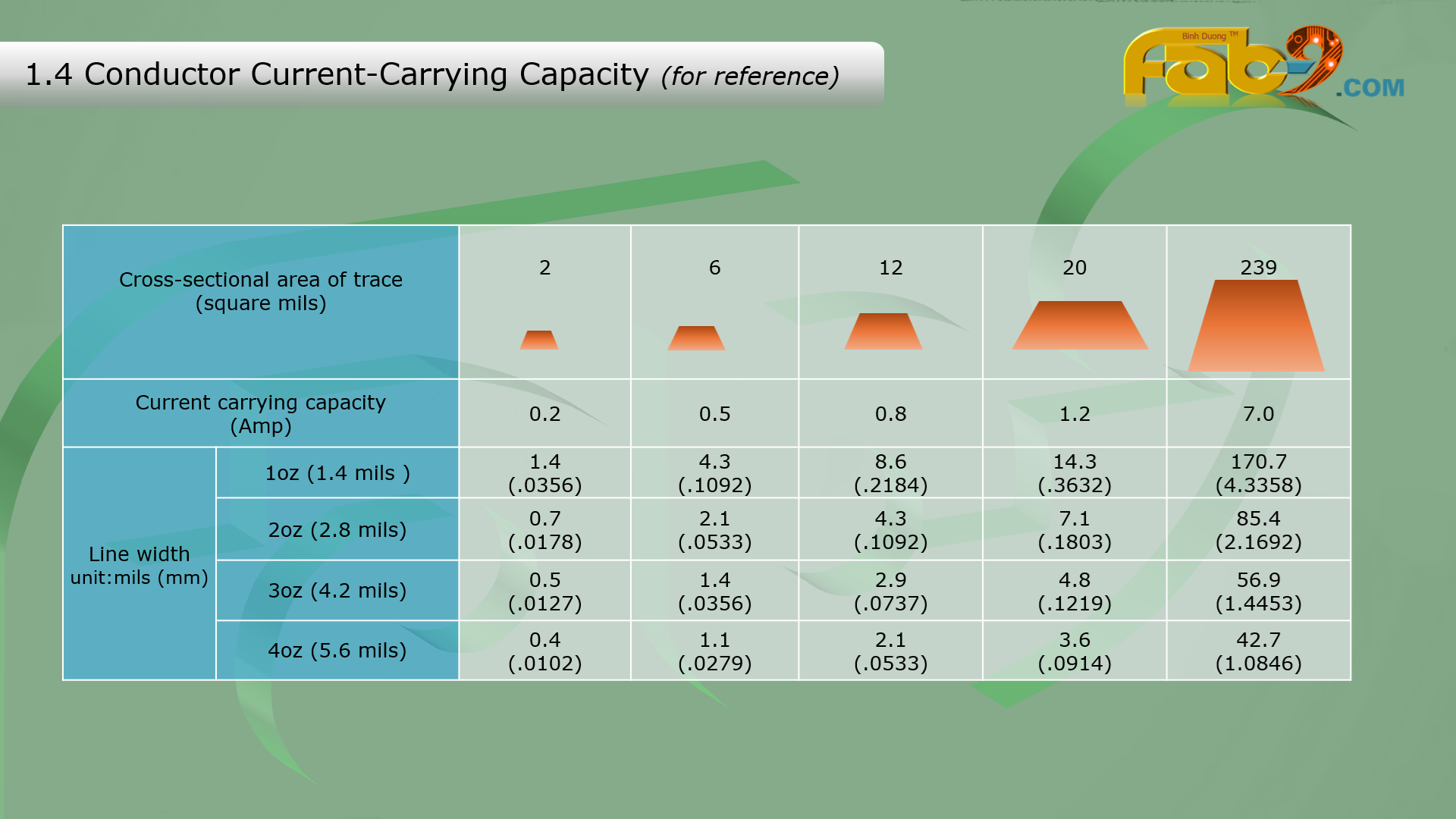

1.4 Conductor Current-carrying Capacity

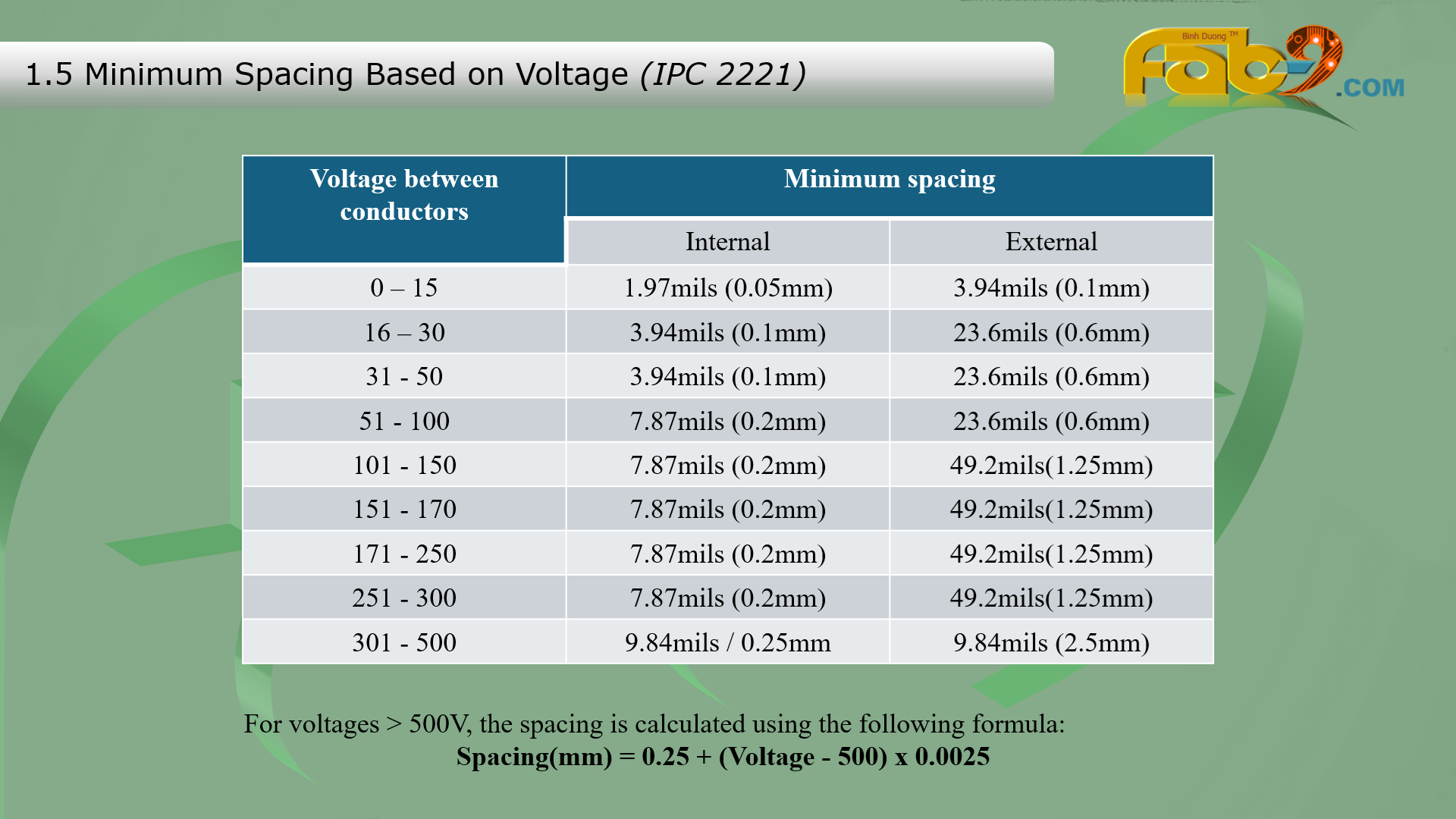

1.5 Minimum Spacing Based on Voltage (IPC 2221)

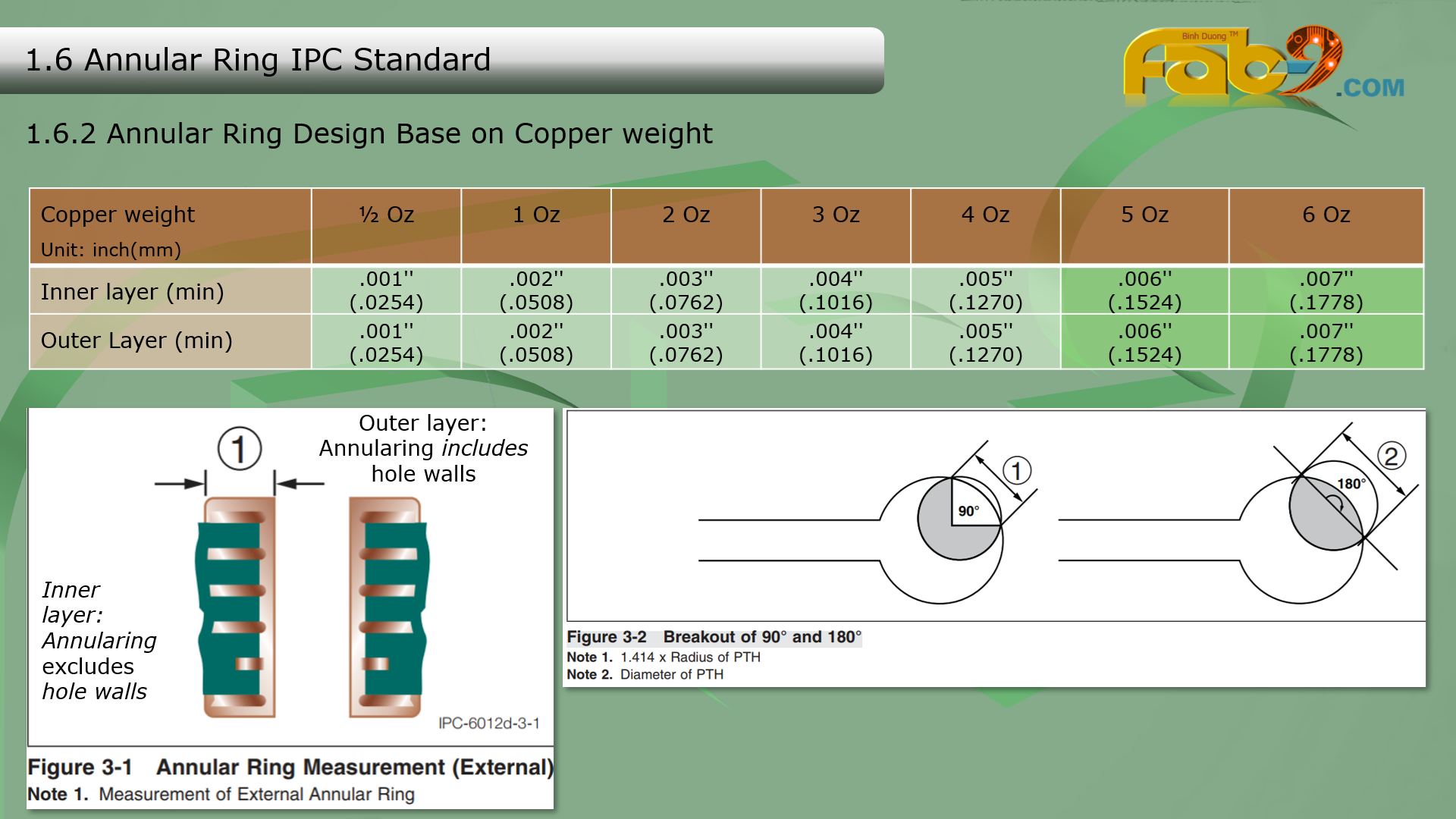

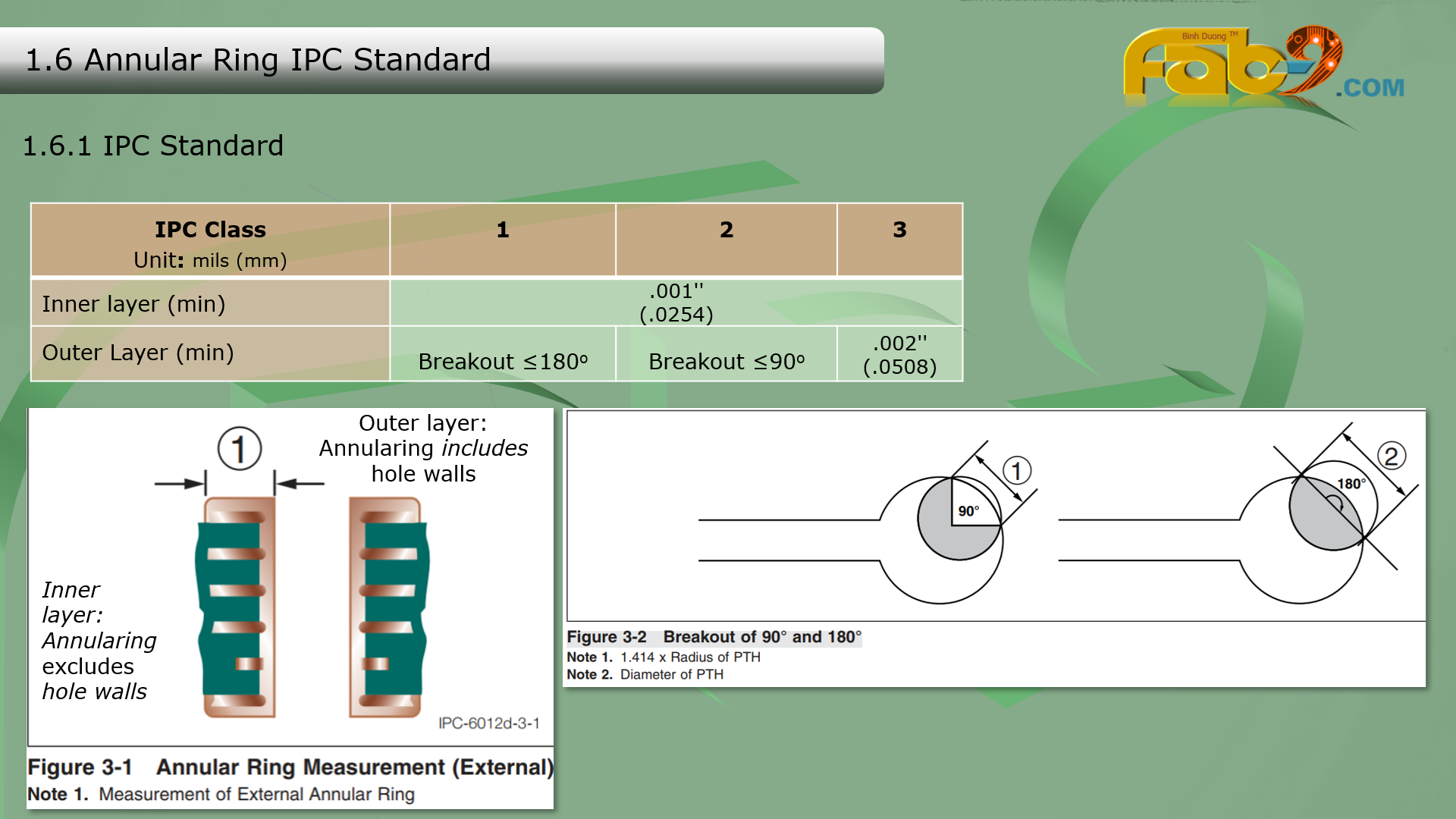

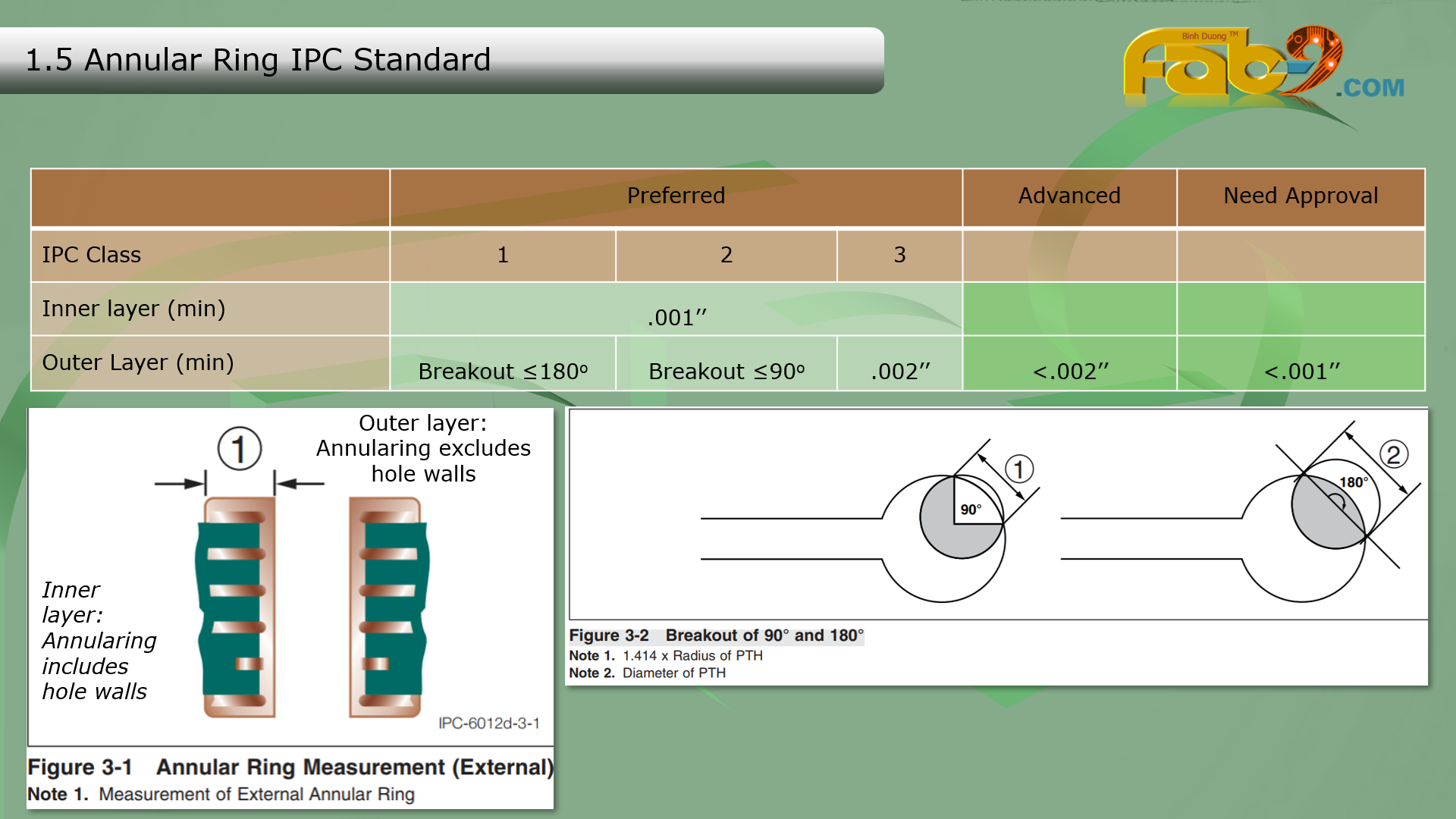

1.6 Annular Ring IPC Standard

1.1

1.1

1.1

1.2

1.2

1.3

1.4

1.5

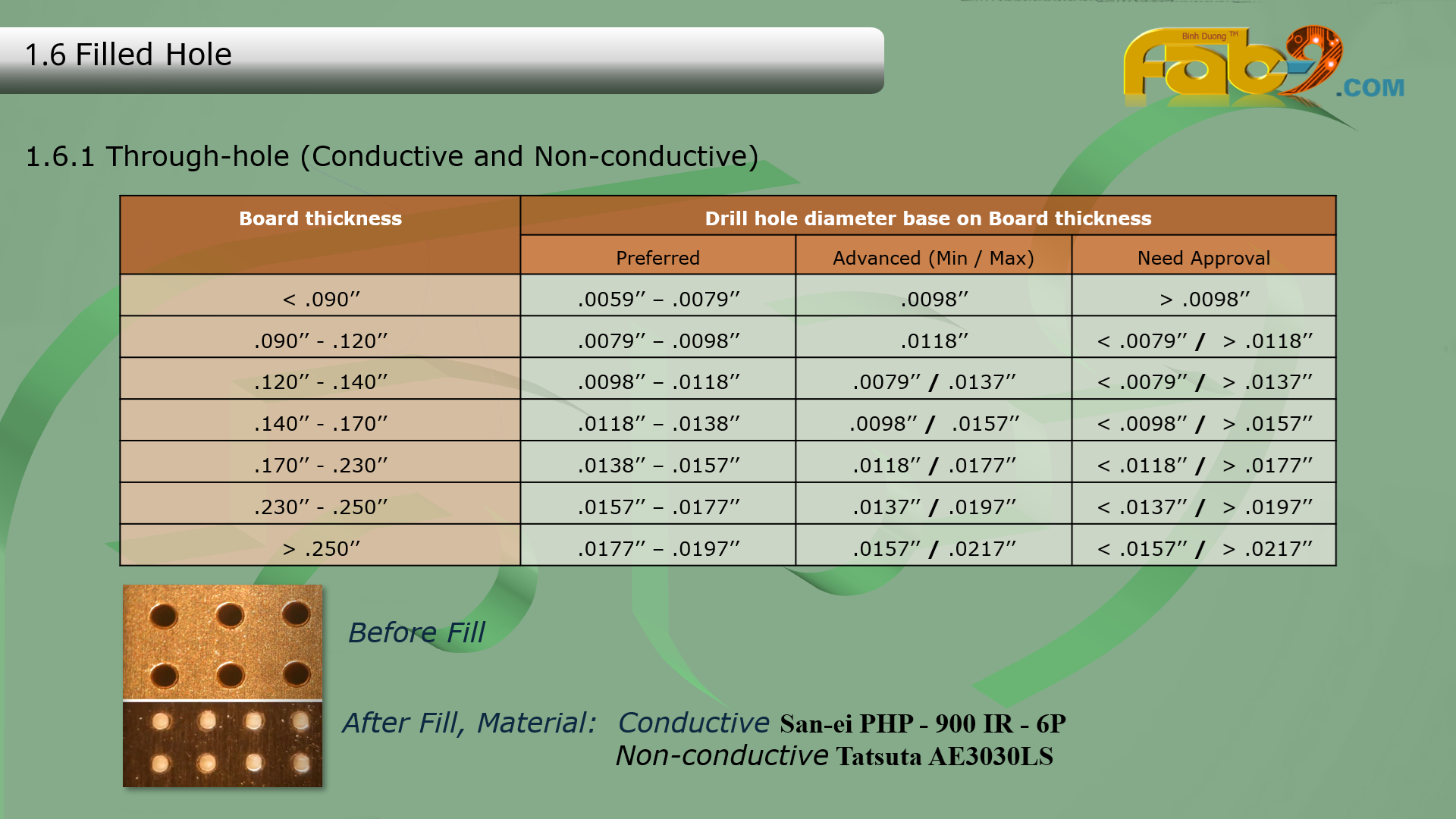

1.6

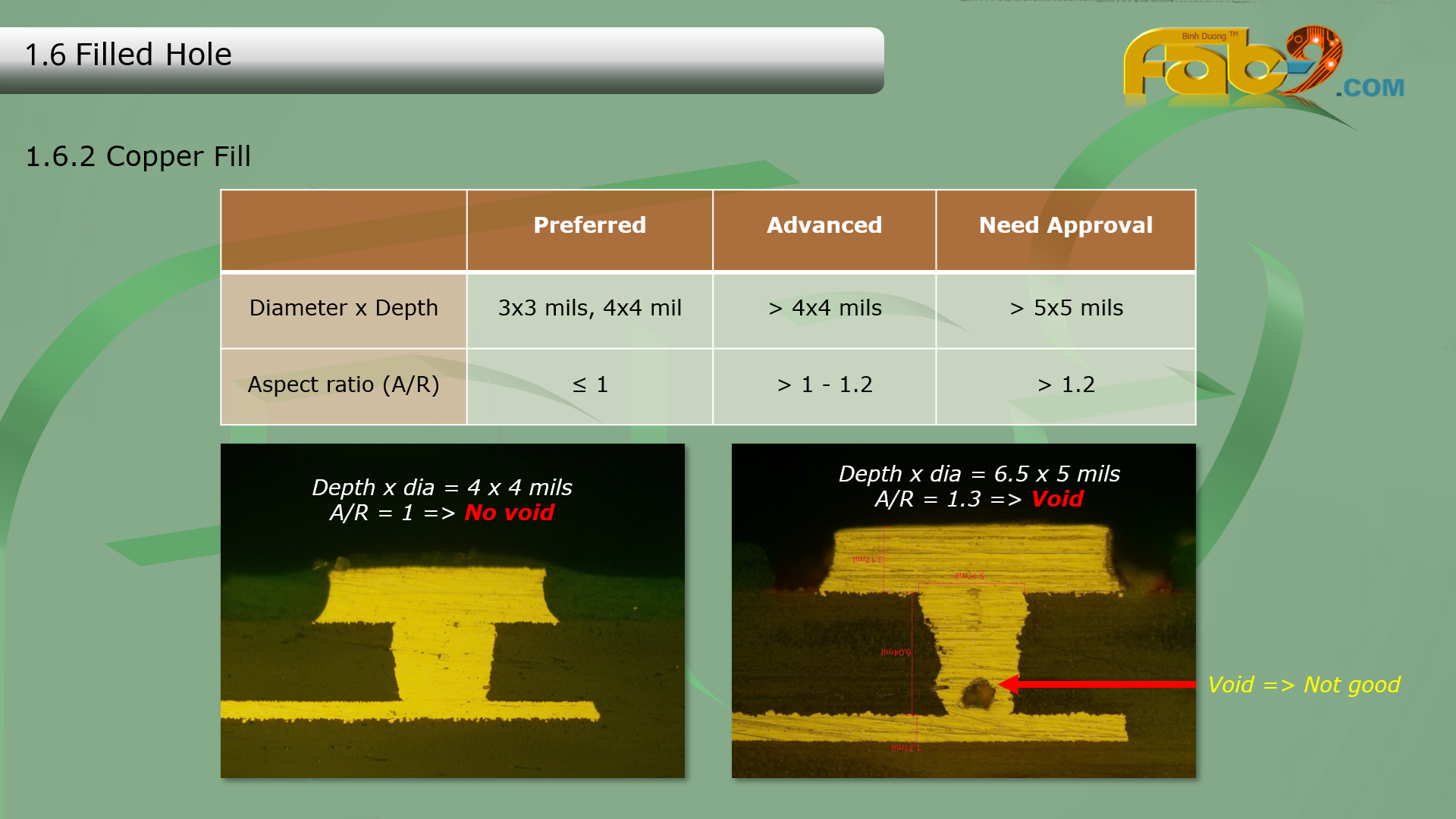

1.6
