Legend and Markings

🔙 Back to DFM MAIN MENU

Main DFM image

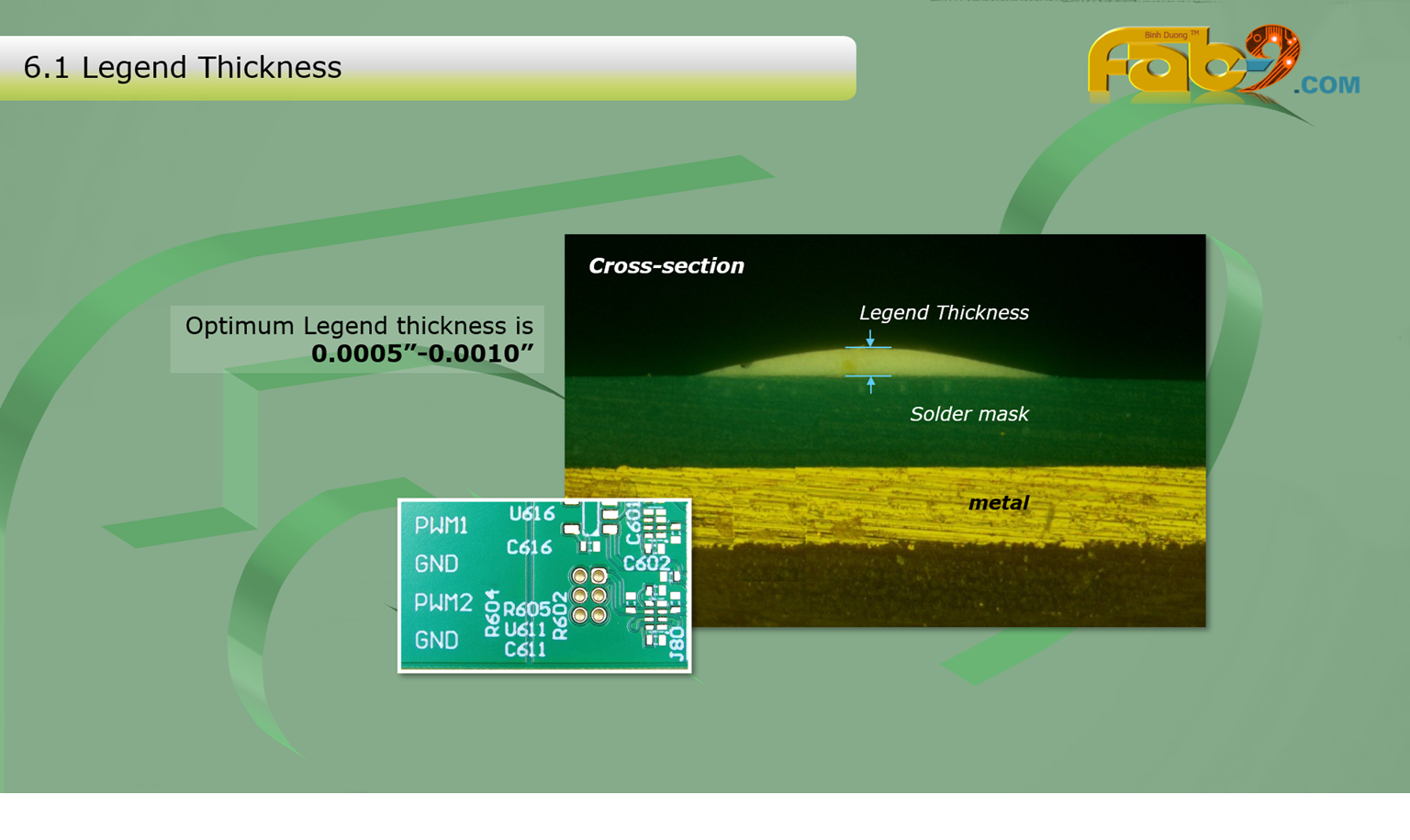

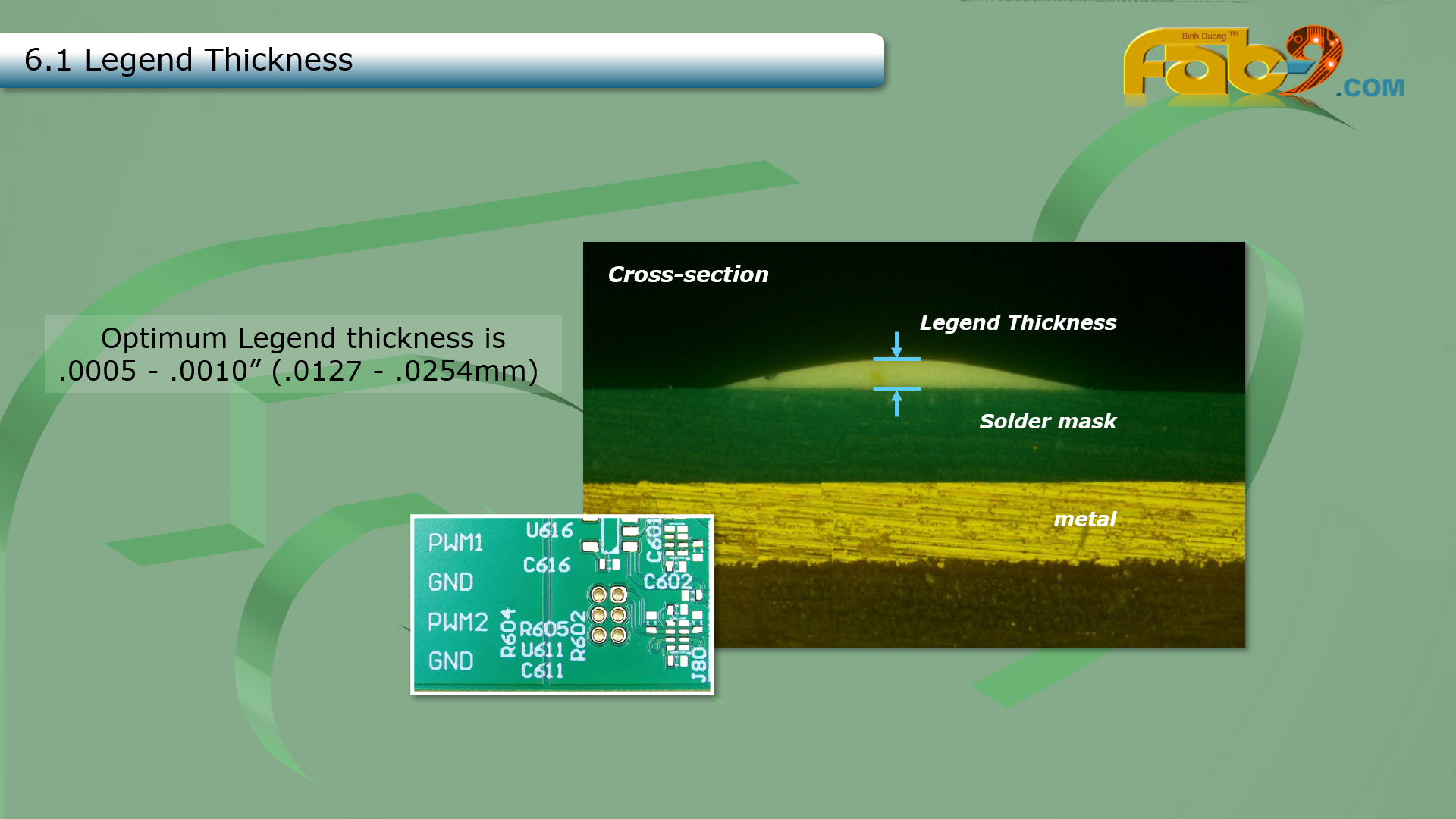

6.1 Legend Thickness

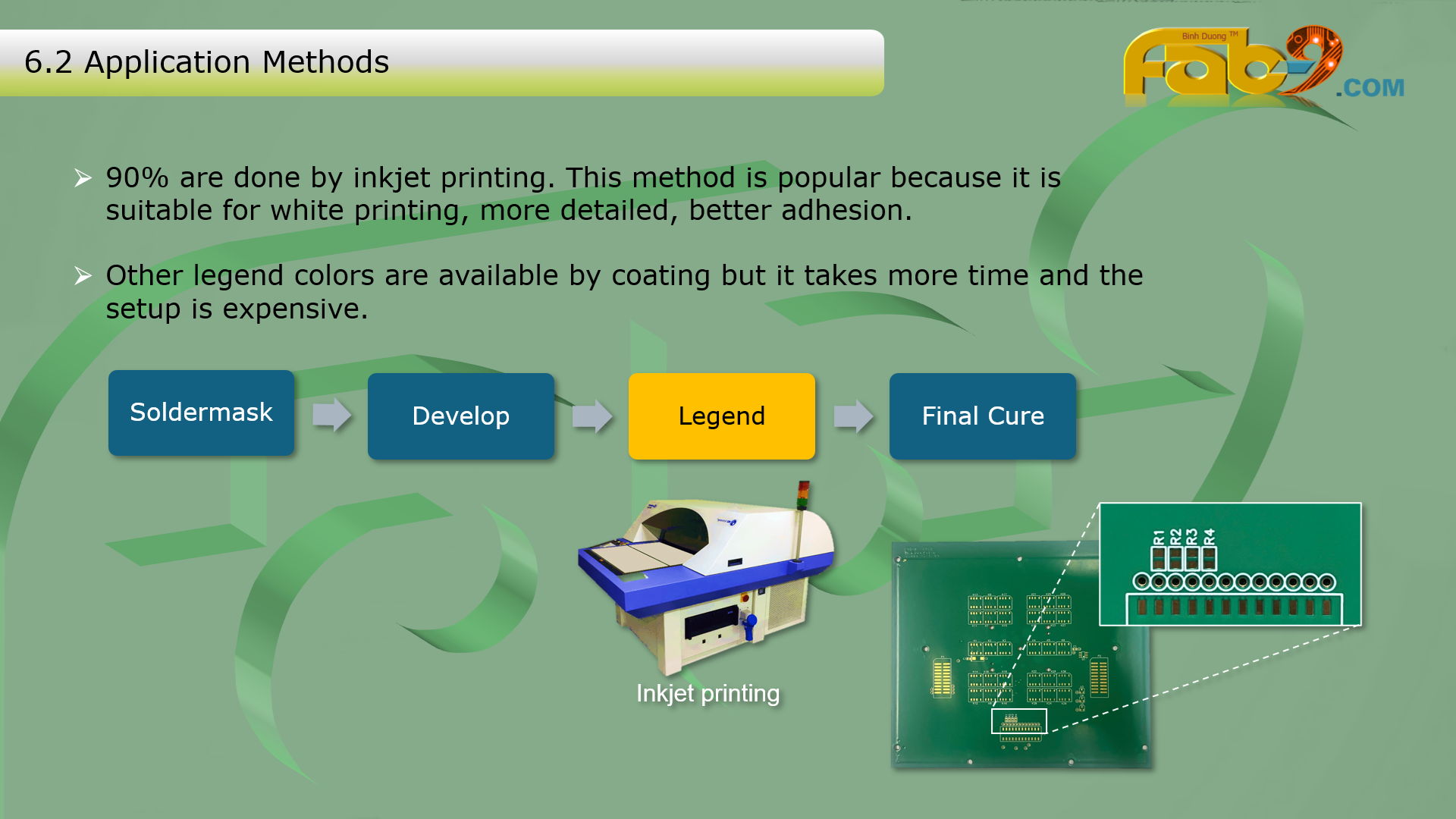

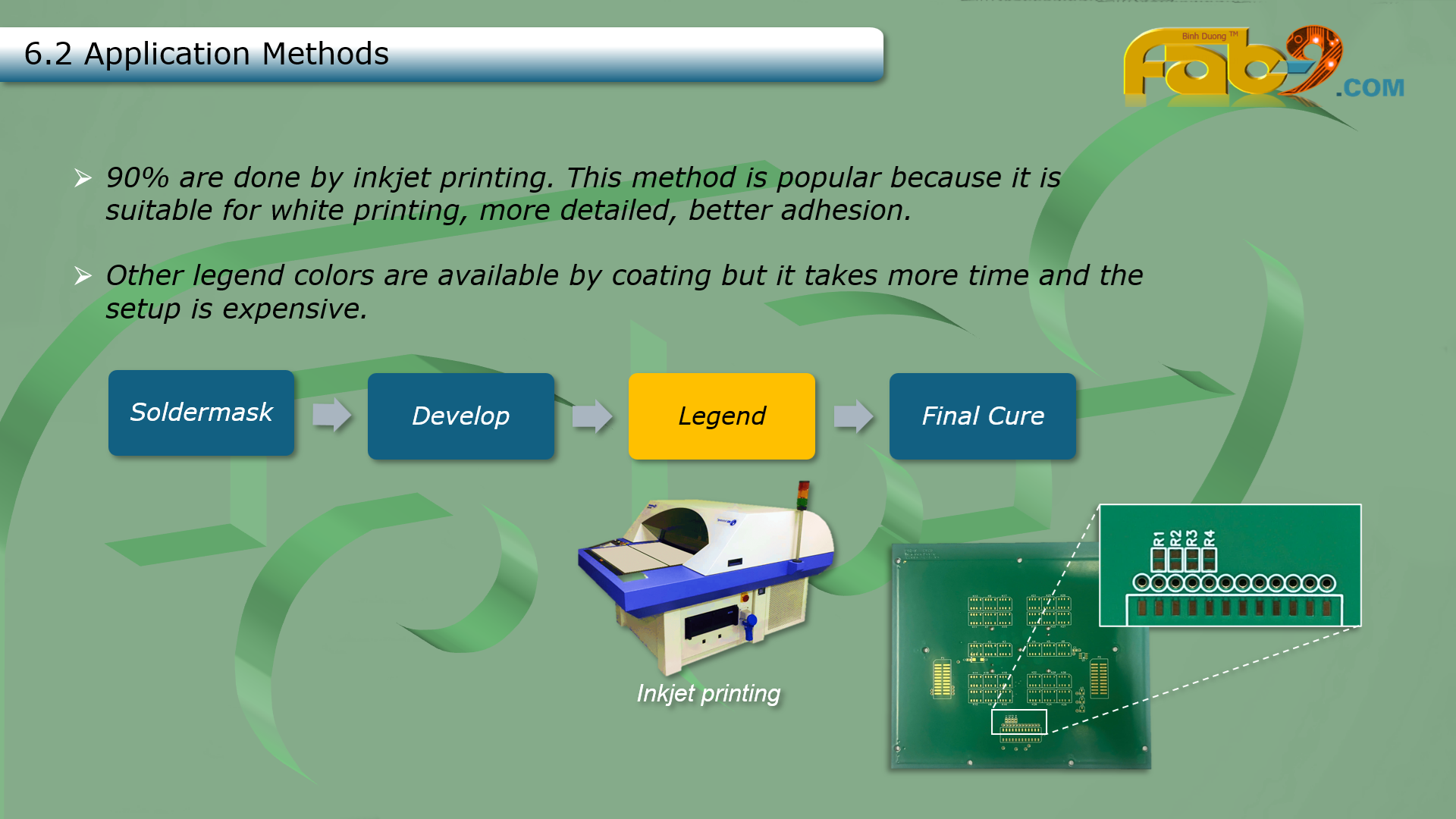

6.2 Application Methods

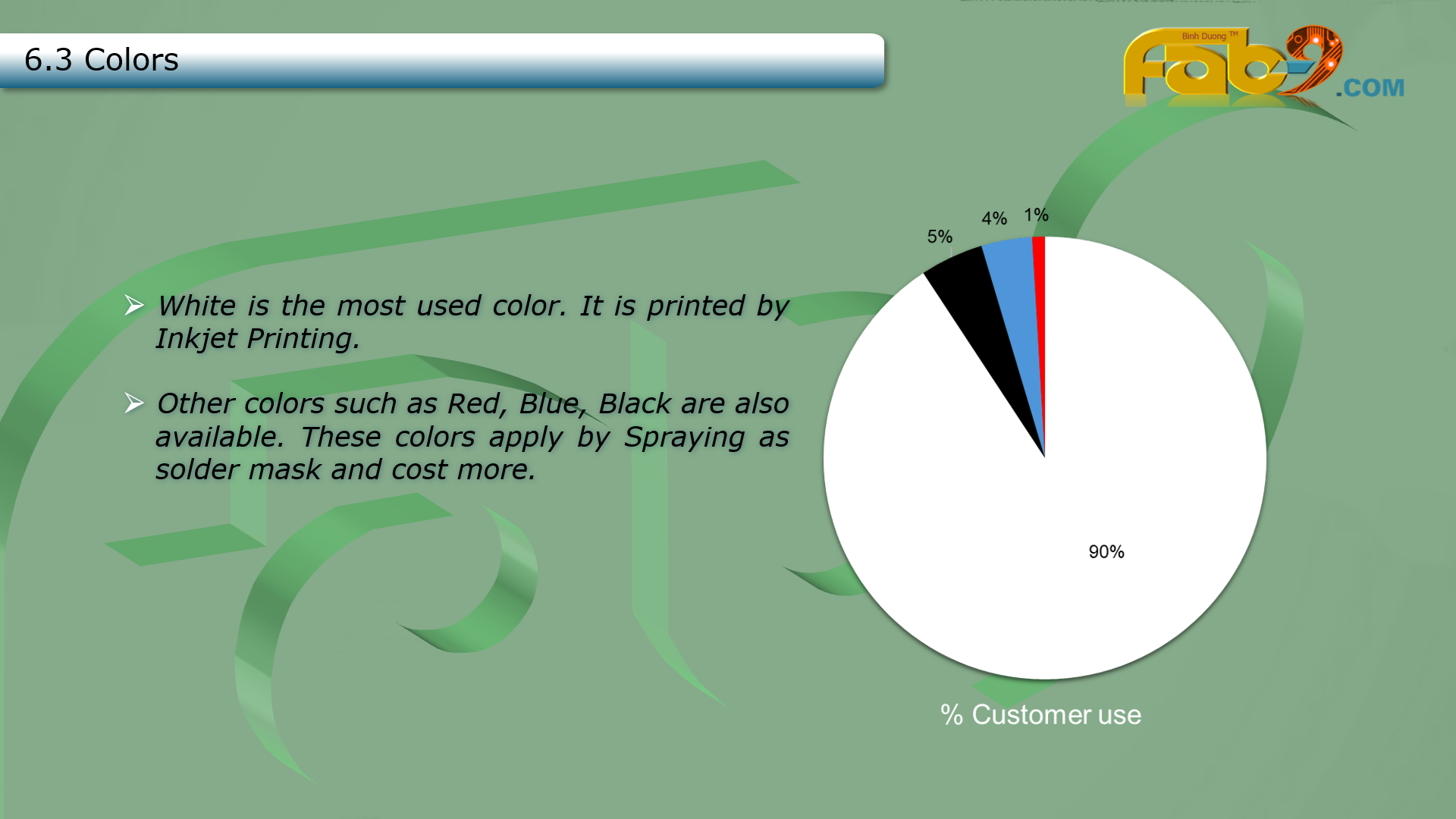

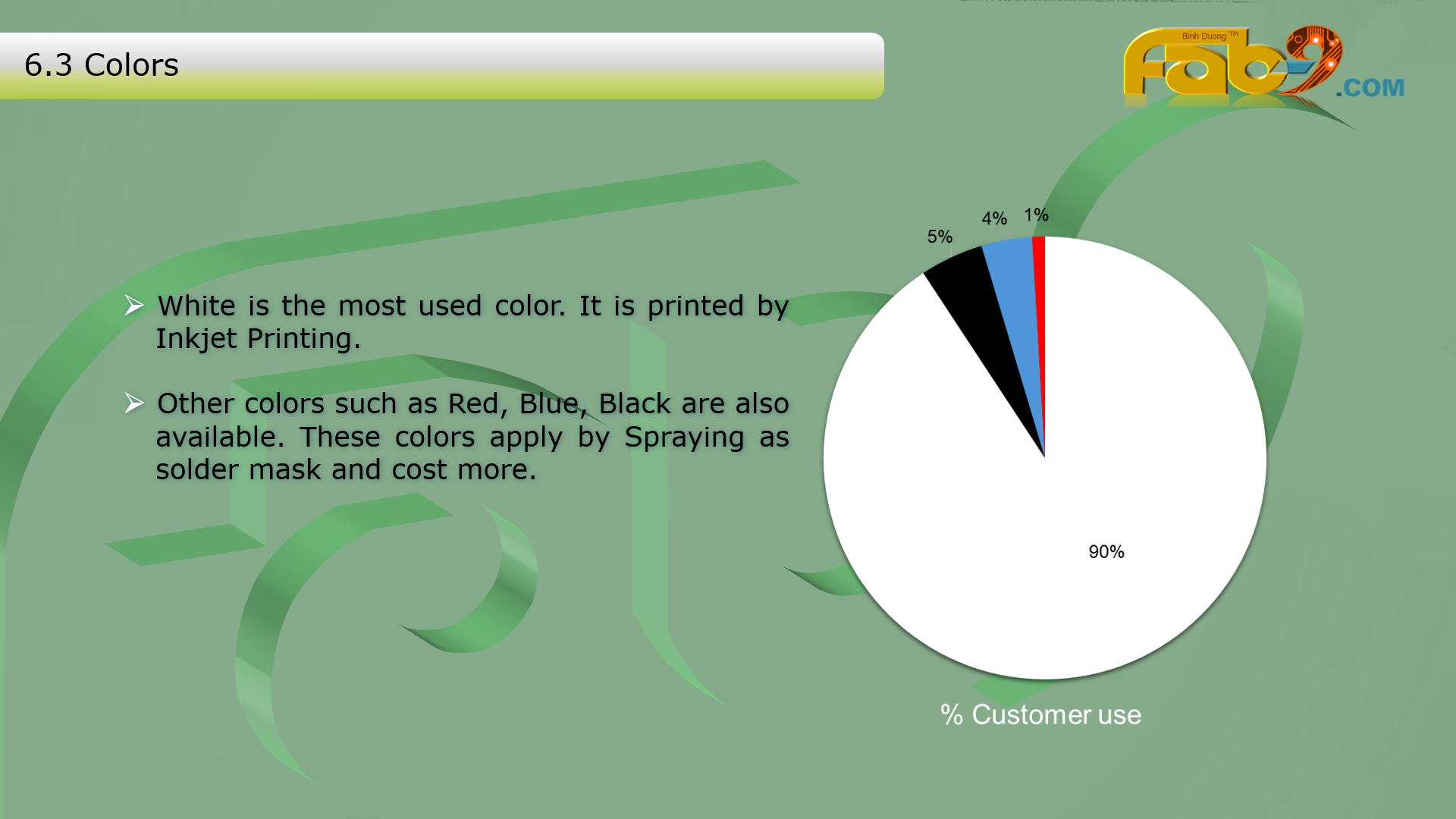

6.3 Color

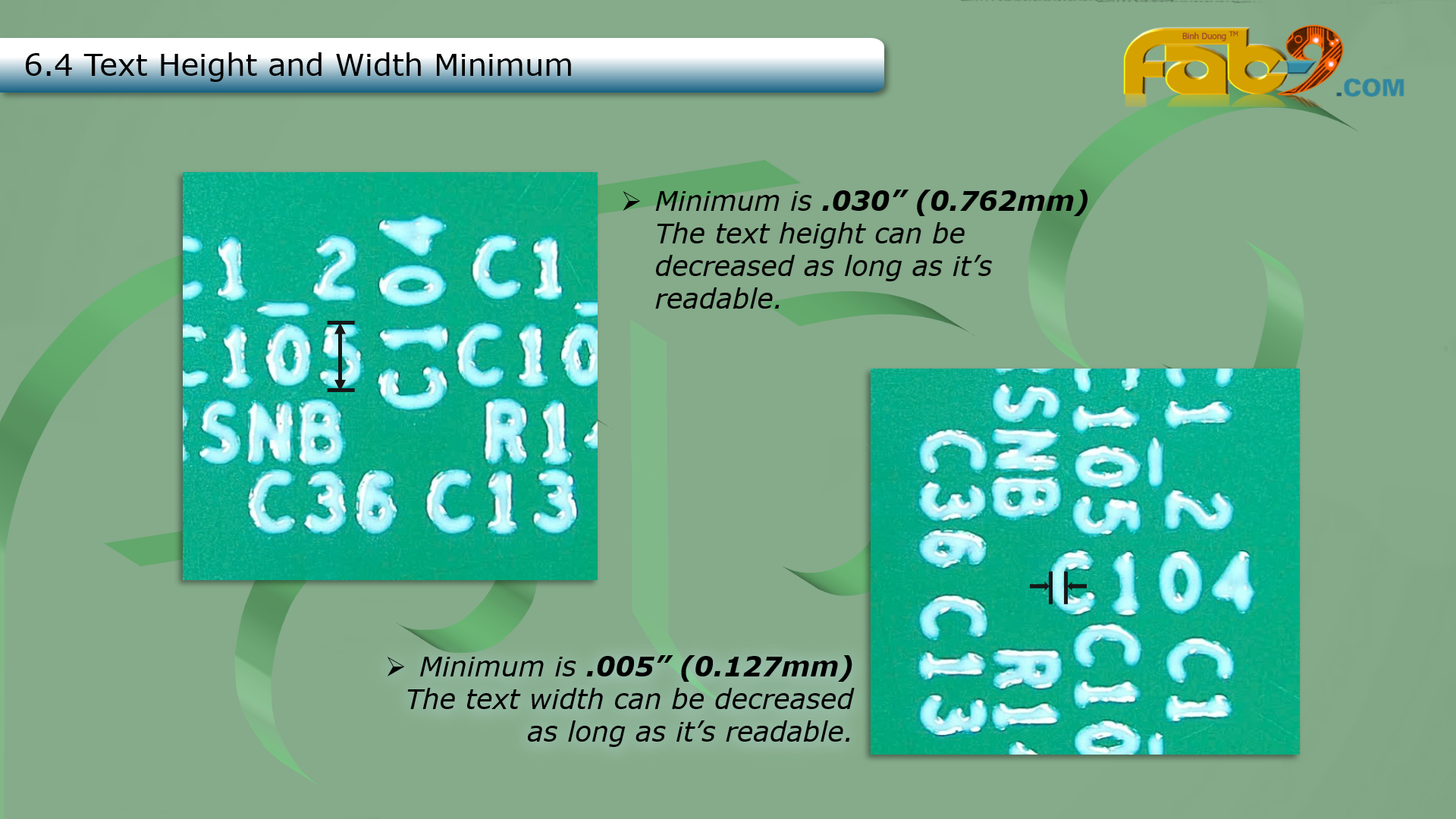

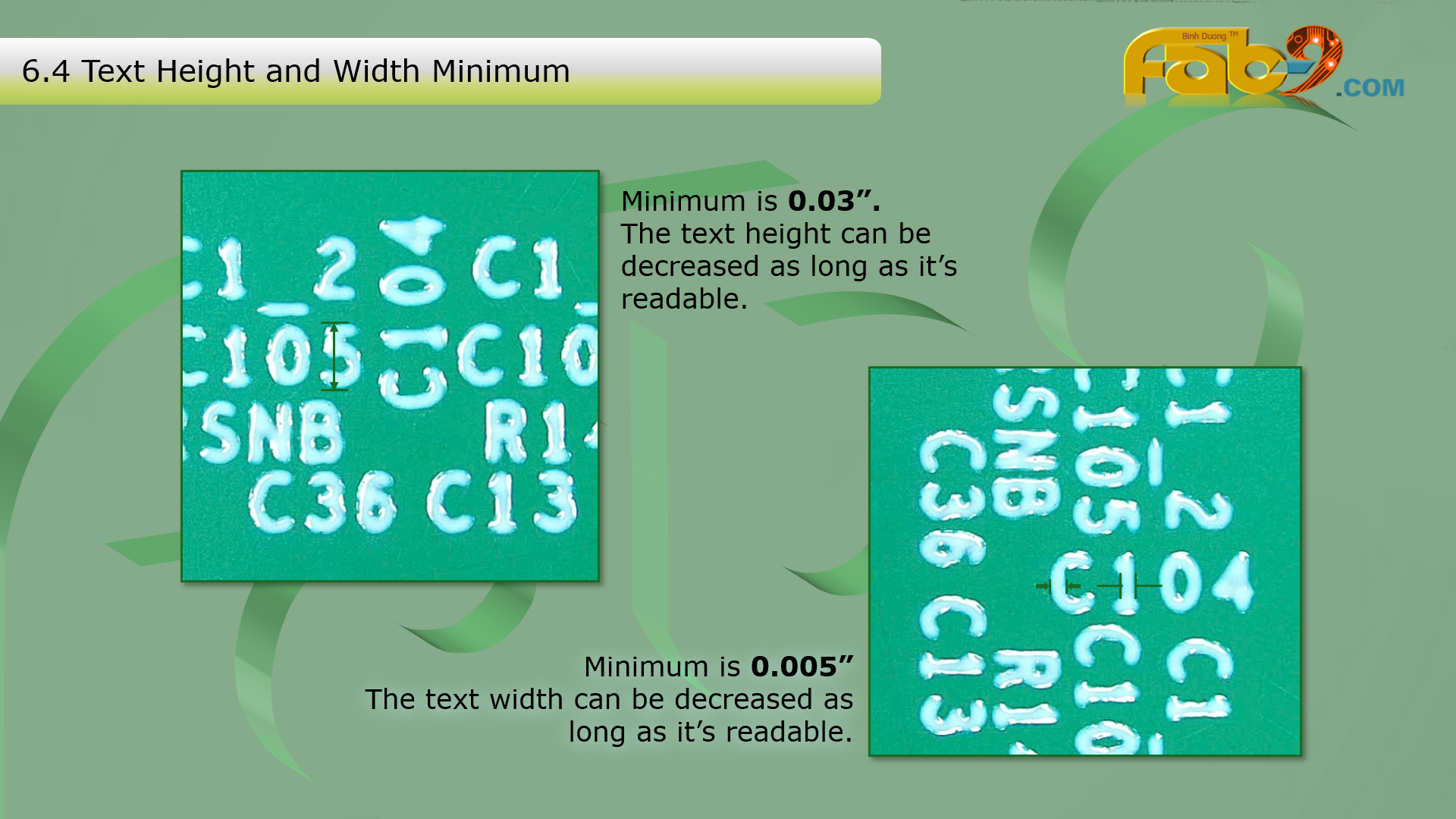

6.4 Text Height and Width Minimum

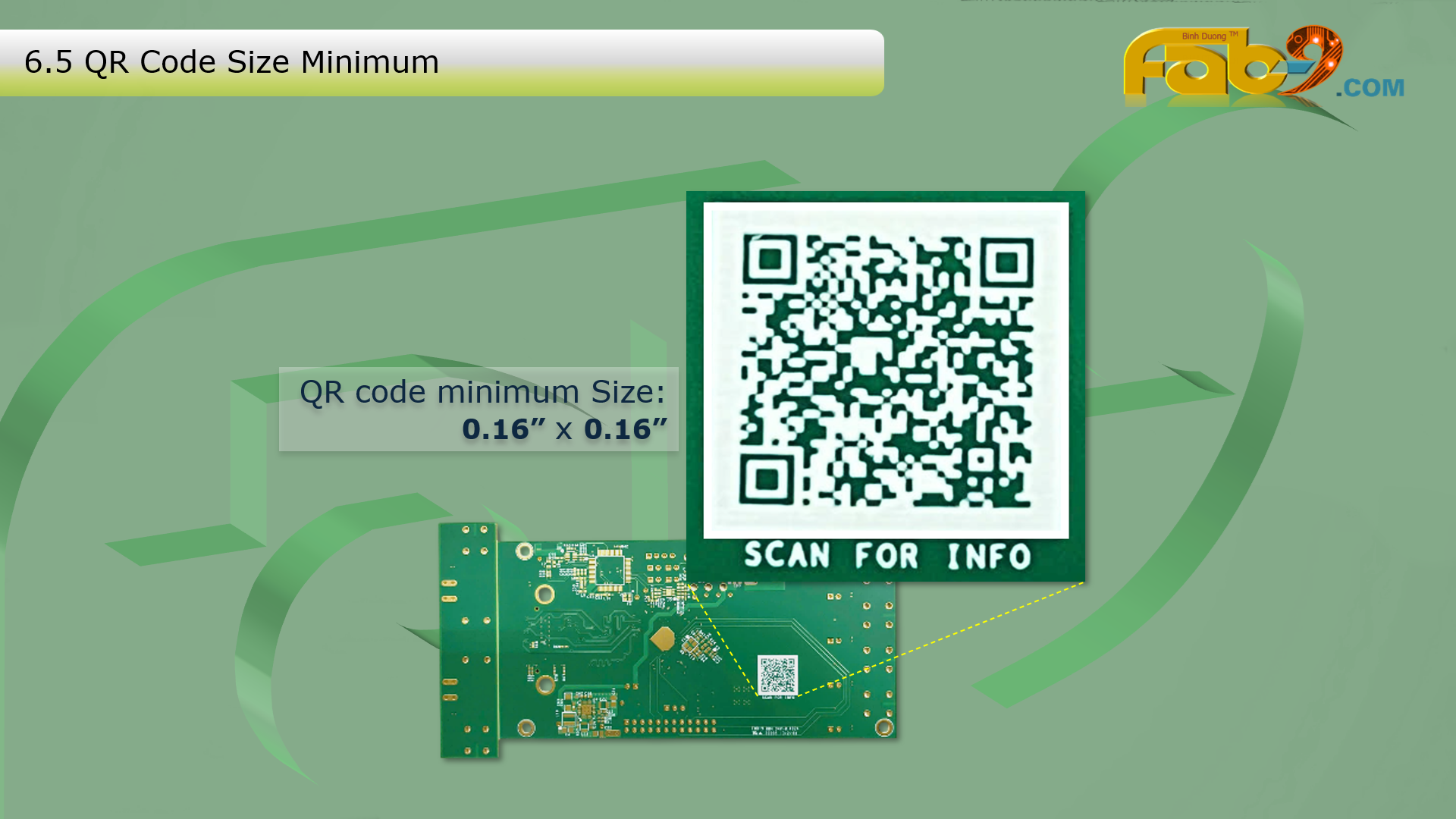

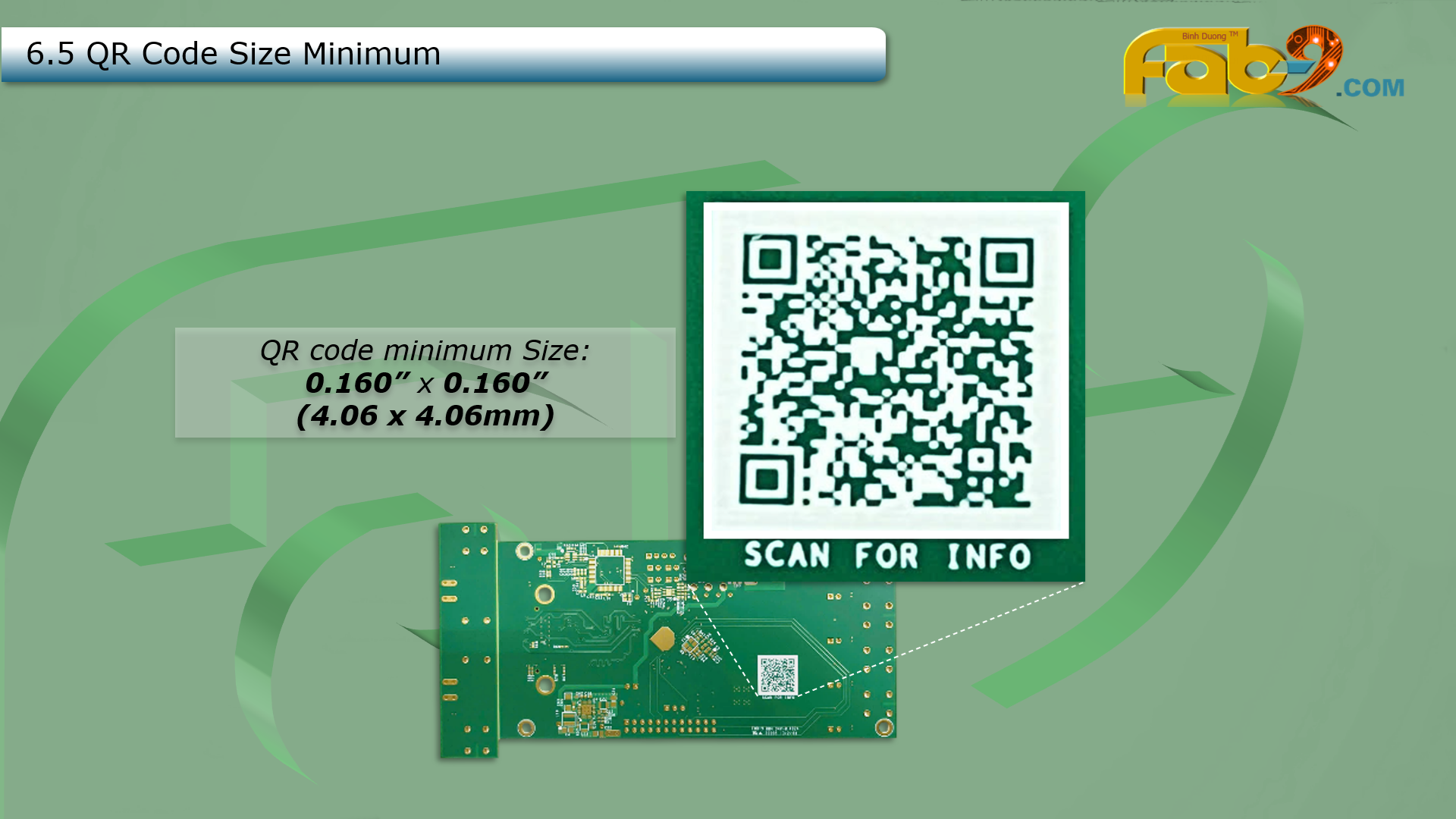

6.5 QR Code Size Minimum

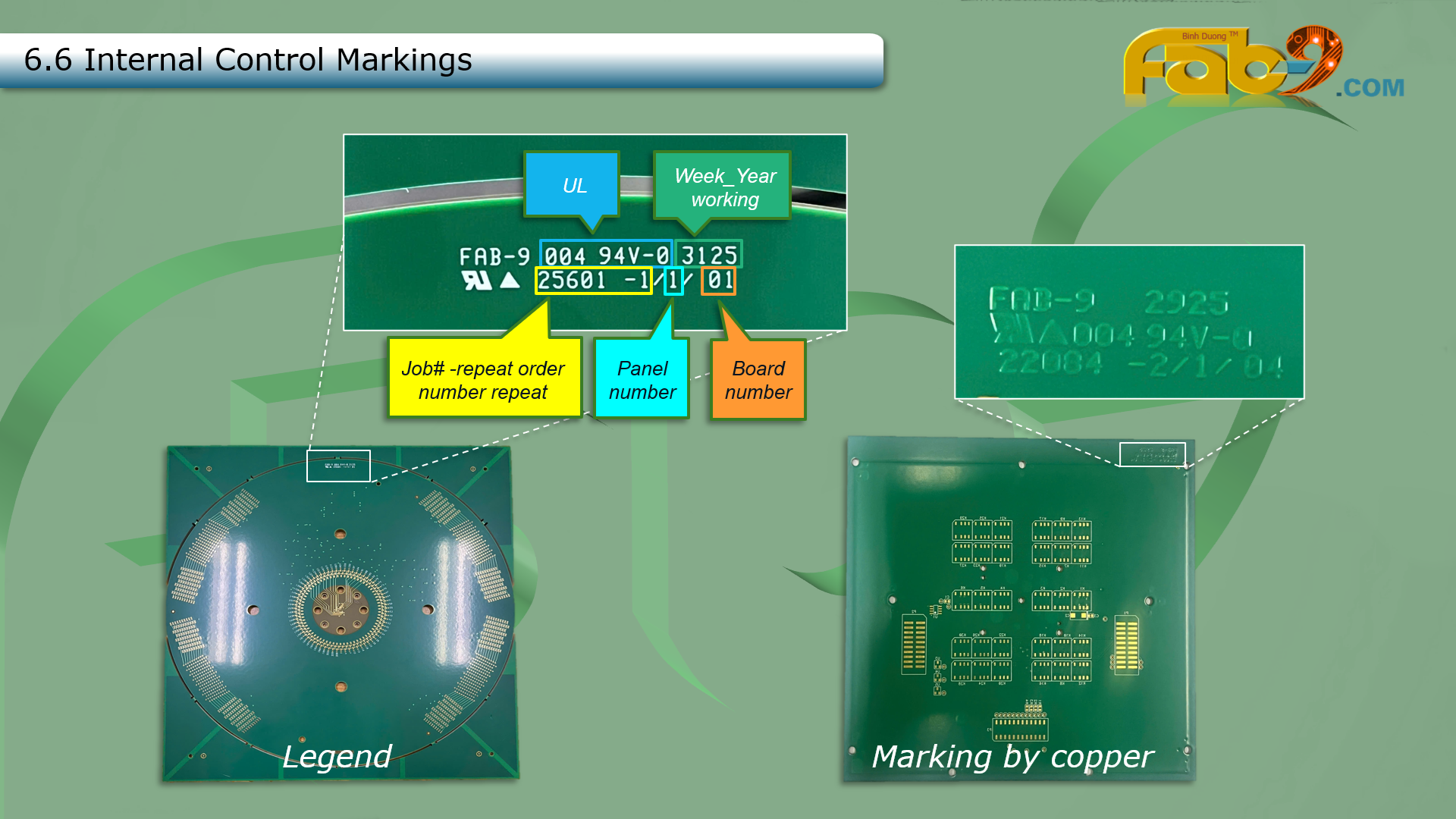

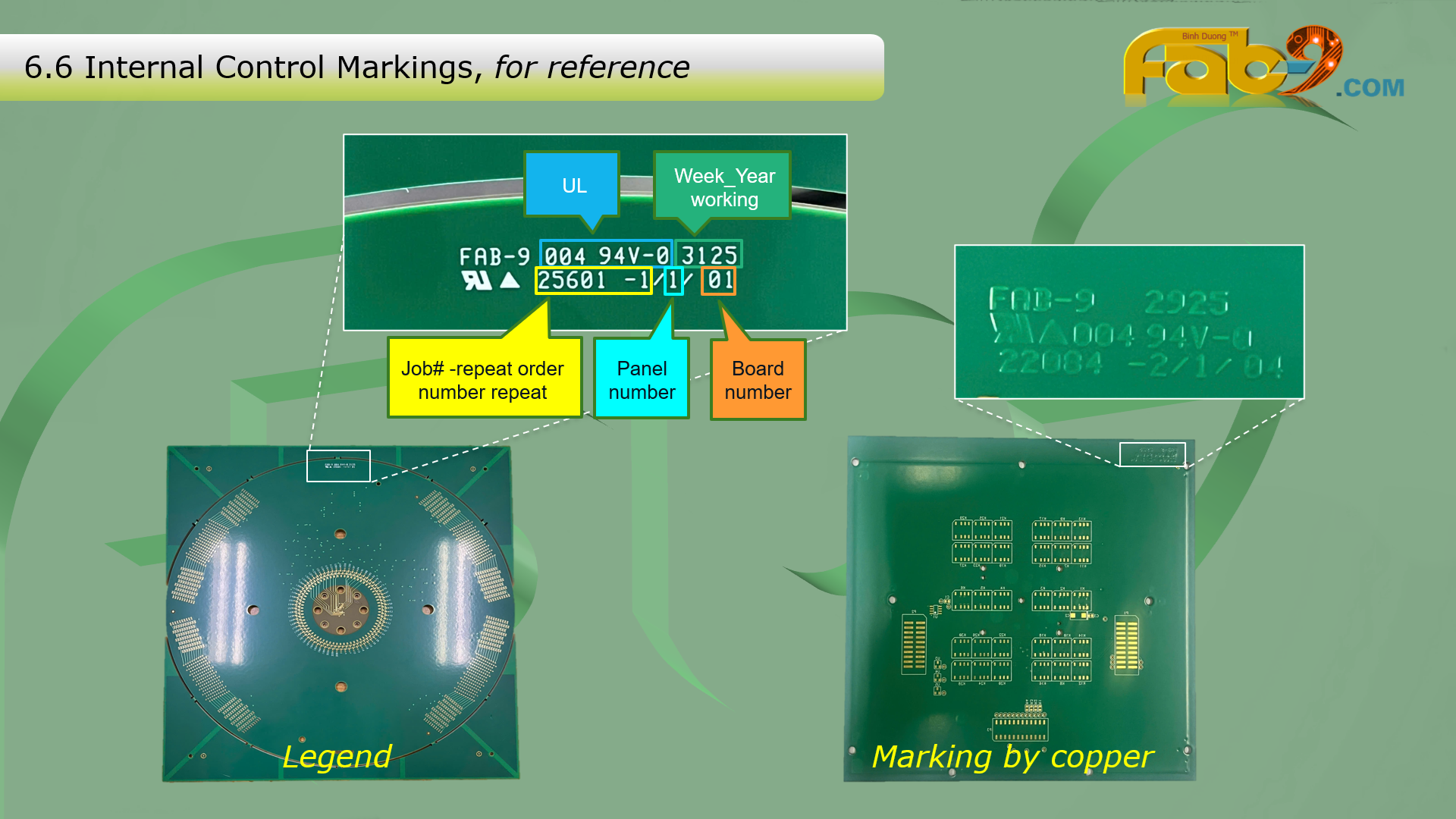

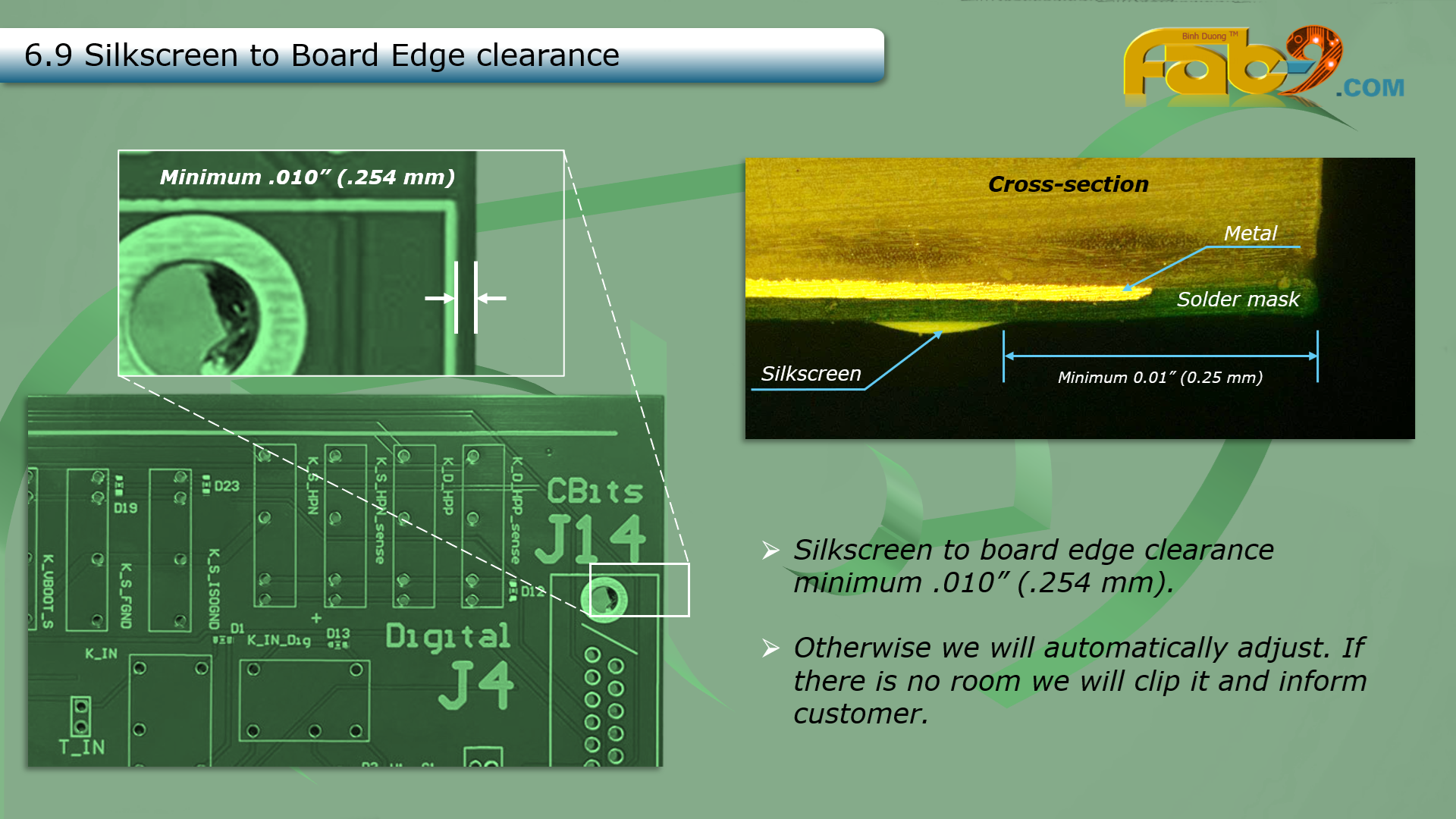

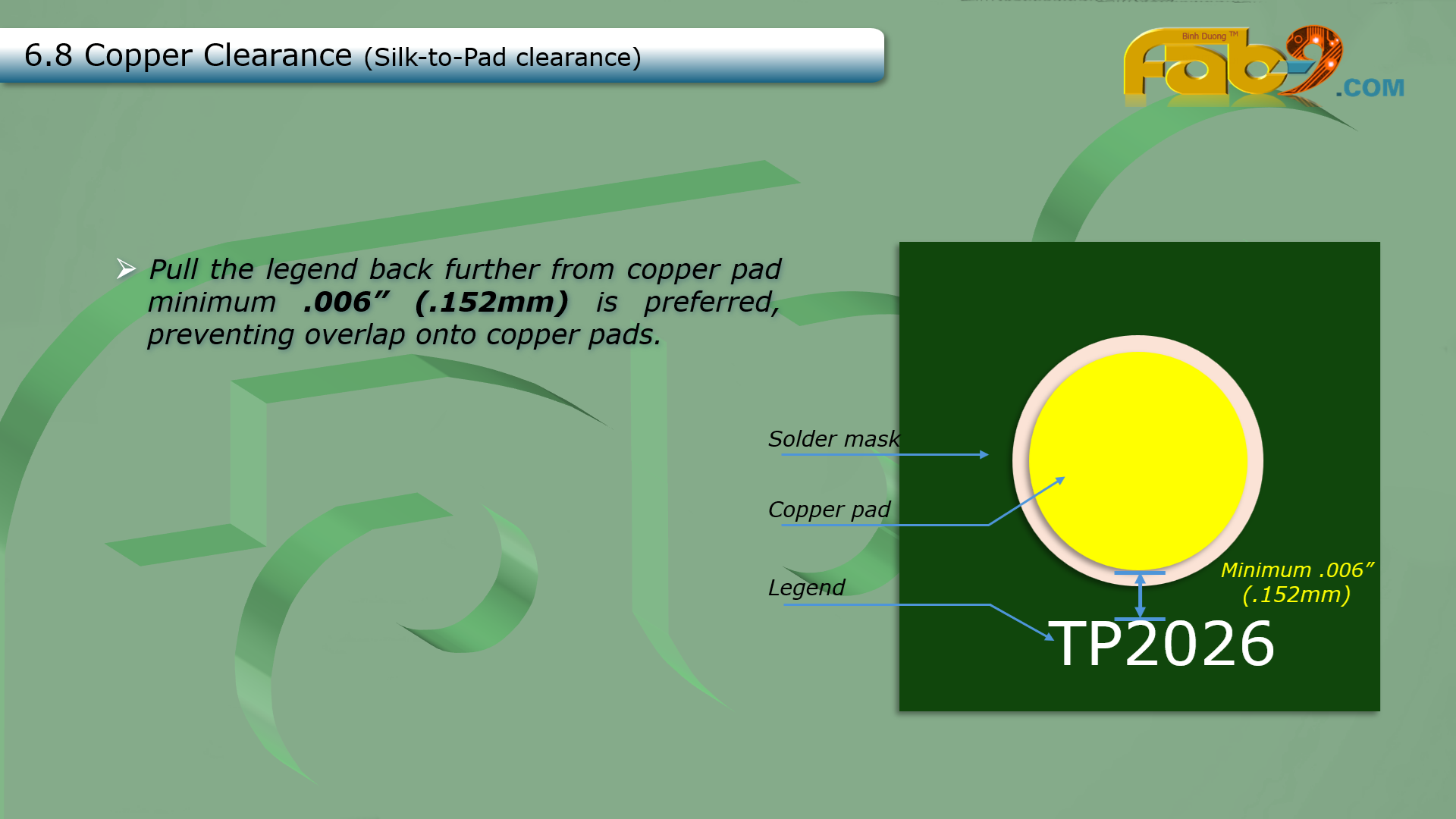

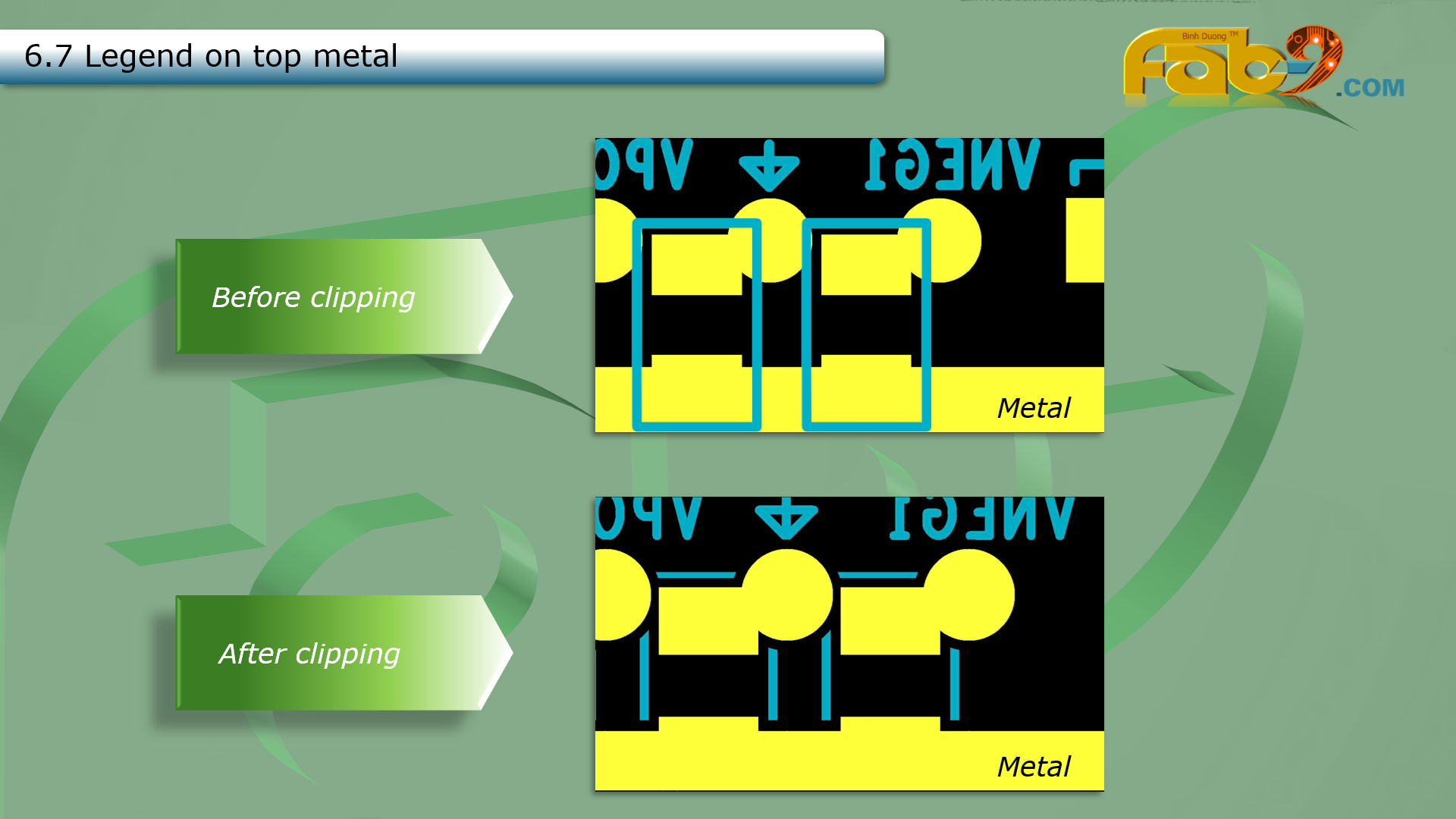

6.6 Internal Control Markings
